| GENERAL |

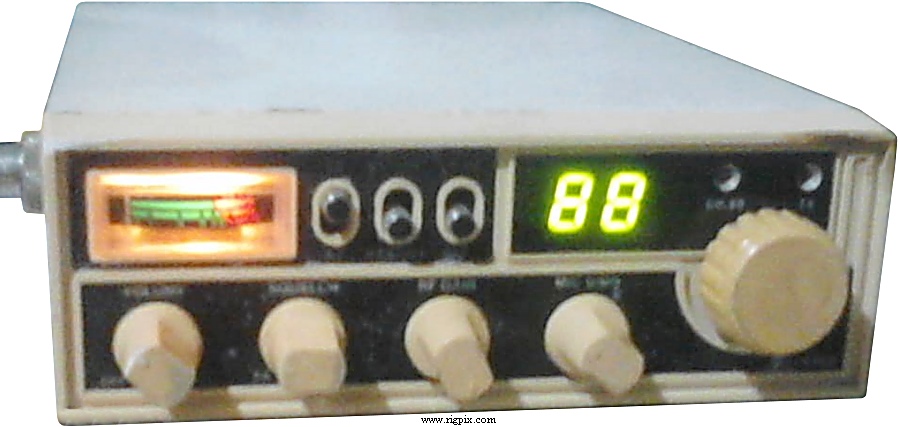

| Type: | Marine HF transceiver |
| Frequency range: |
TX: 27.680-27.980 MHz
RX: 27.680-27.980 MHz + WX: 156.800 and 156.375 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | 27 MHz: AM
156 MHz: FM (RX only) |
| Channels / memory management: |
10 regular
2 weather channels (Marine channel 16 and 67)
|
| Duplex shift / offset: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 27 MHz: 50 ohm / SO-239
156 MHz: 50 ohm / Phono (RCA) |
| Dimensions (W*H*D): | 160*55*217 mm (6.3*2.16*8.54") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: | Channel 88 switch. ANL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 27 MHz: 0.5 uV (No S/N reference)
156 MHz: 0.5 uV (12 dB SINAD) |
| Squelch sensitivity: | 1 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 4 W at 10% distortion / 16 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
4 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 500 ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1984-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (1.9 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
