| GENERAL |
| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.6-30 MHz
RX: 0.15-30 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 0.34 ppm @ -15 to +55°C (5 to 131°F) |
| Mode: | TX: SSB
RX: AM / SSB |
| Channels / memory management: |
All ITU channels between 4-25 MHz
100 quick select pairs
10 scanning banks with up to 128 channels each
|
| Duplex shift / offset: | According to bandplan |
| Power supply: | 24 VDC -10/+30% |
| Current drain / power consumption: | RX: 900 mA (Standby)
TX: Max 13 A |
| Antenna impedance / connector: | 50 ohm / BNC |

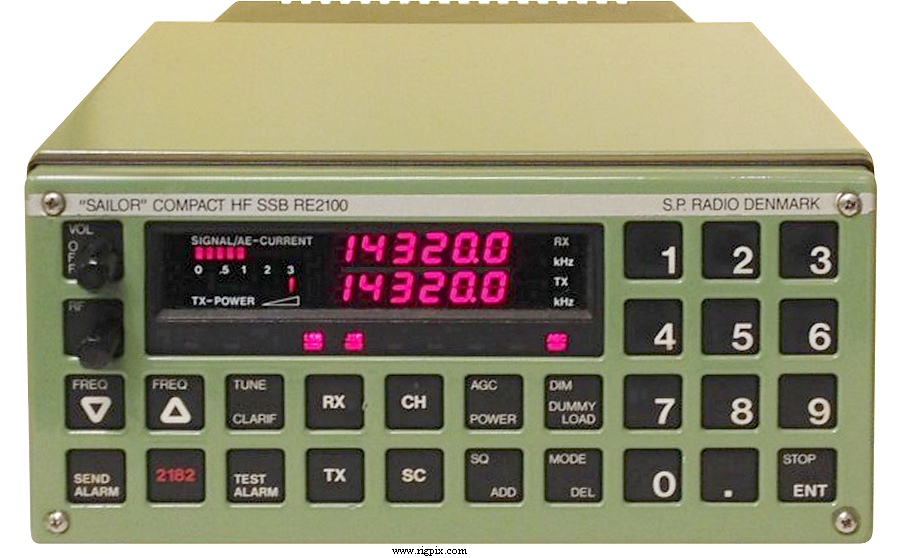

| Dimensions (W*H*D): | RE2100: ? mm (?")
T2130: ? mm (?") |
| Weight: | RE2100: 4.5 Kg (9.92 lb)
T2130: 14 Kg (30.86 lb) |
| Other features: | 2182 KHz button. SOLAS two-tone generator. Dimmer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 70 MHz
2nd IF: 10.73 MHz
|
| Sensitivity: |
AM: 15.9 uV (20 dB SINAD)
SSB: 3.16 uV (20 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: |
AM: 6.6 KHz (-6 dB)
SSB: 2.35 KHz (-6 dB)
|
| Image rejection: | |
| AF output power / speaker: | 5 W at 10% distortion / 8 ohm
10 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 250 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -67 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Denmark, 199x-199x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT2110
C2140
RM2150
RM2151
|
Antenna tuner unit
Remote control unit
DSC MF/HF receiver with modem
Telex/DSC scanning receiver with modem
|
|
