| GENERAL |

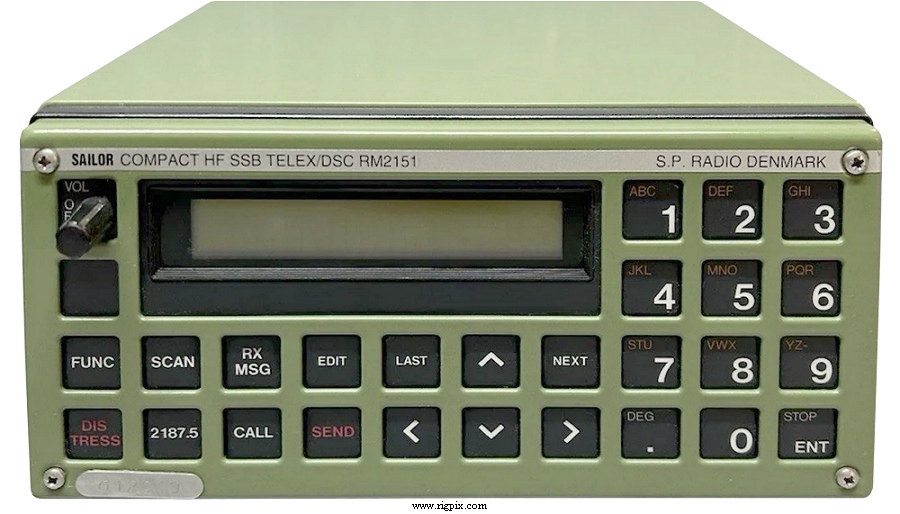

| Type: | Marine HF receiver/modem |
| Frequency range: |
0.1-30 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 0.39 ppm @ -15 to +55°C (5 to 131°F) |
| Mode: | Telex / DSC |
| Channels / memory management: |
60 regular in 10 programmes
|
| Duplex shift / offset: | |
| Power supply: | +18,-18 and +9 VDC |
| Current drain / power consumption: | ? A |

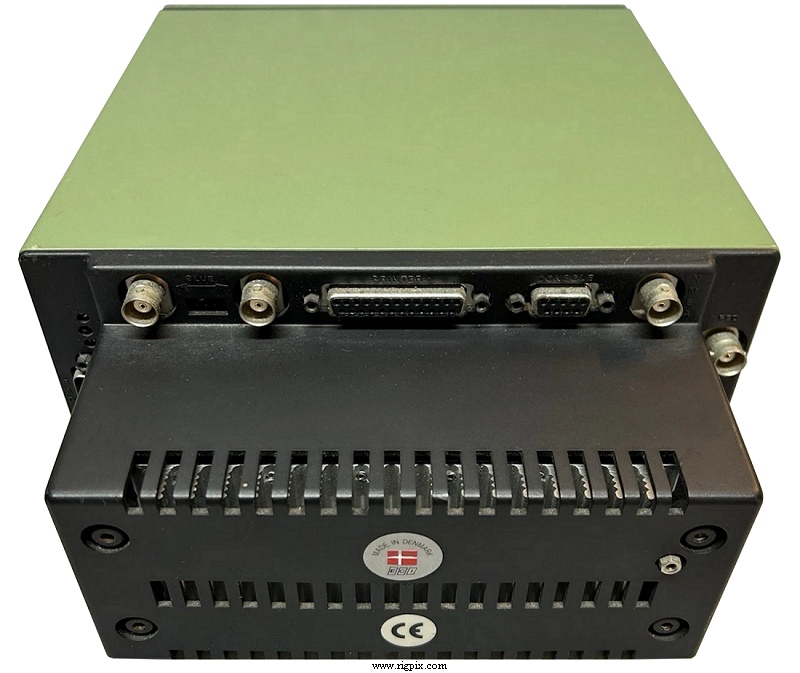

| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 210*98*300 mm (8.27*3.86*11.81") |
| Weight: | 3.7 Kg (8.2 lb) |
| Other features: |
Integrated scanning DSC and Telex modem. Centronics port.
RS-232C port. NMEA0183.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 70 MHz
2nd IF: 10.73 MHz
|
| Sensitivity: | 0.13 uV (No S/N reference) |
| Squelch sensitivity: | |
| Selectivity: | 300-700 Hz (-3 dB)
1.5 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Denmark, 199x-199x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
