| GENERAL |
| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.605-30 MHz
RX: 0.15-30 MHz
|
| Tuning steps: | 10 / 100 Hz, 1 KHz |
| Frequency stability: | 0.35 ppm @ -15 to +55°C (5 to 131°F) |
| Mode: | TX: SSB / Telex
RX: AM / SSB / Telex |
| Channels / memory management: |
199 user programmable
|
| Duplex shift / offset: | According to bandplan |
| Power supply: | 24 VDC -10/+30% |
| Current drain / power consumption: | RX: Max 60 W
TX: Max 420 W |
| Antenna impedance / connector: | 50 ohm / Two ? |

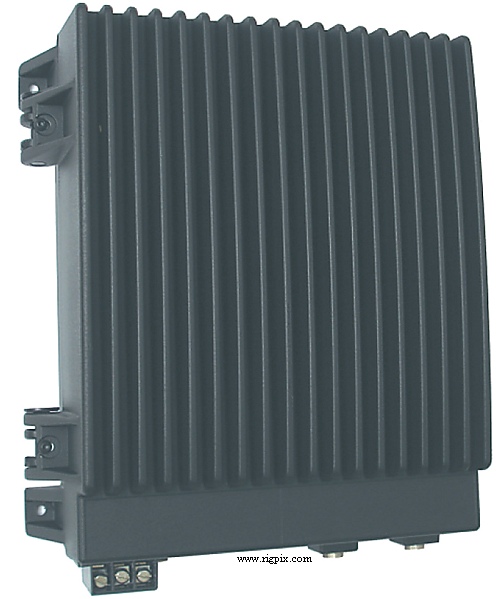

| Dimensions (W*H*D): | Transceiver unit: 390*445*127 mm (15.3*17.5*5")

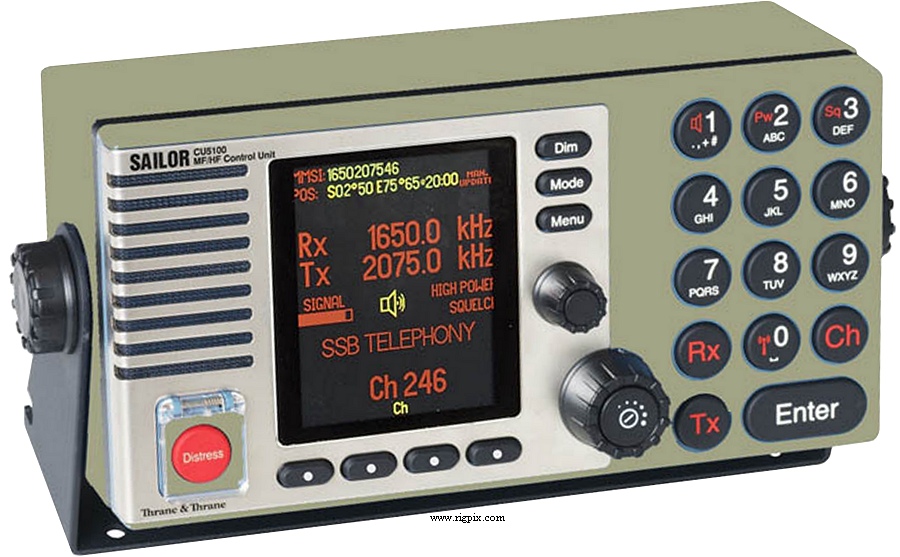

Controller unit: 200*100*80 mm (7.9*3.9*3.1") |
| Weight: | Transceiver unit: 19 Kg (41.9 lb)
Controller unit: 3.3 Kg (7.3 lb) |
| Other features: | DSC. GPS option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 45 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM: 4 uV (10 dB SINAD)
SSB: 0.7 uV (10 dB SINAD)
DSC/Telex: 0.7 uV (10 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 4 W at 10% distortion / 8 ohm |
| External speaker connector: | 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
SSB: Max 150 W
DSC/Telex: Max 85 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -43 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Denmark, 2007-20xx (Discontinued) |
| Additional info: |
The control unit was available in Black-Grey, T&T Blue and Green.
|
| Related documents: | User manual (1.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
ATU5116
|
Antenna tuning unit. 150 W
|
|
