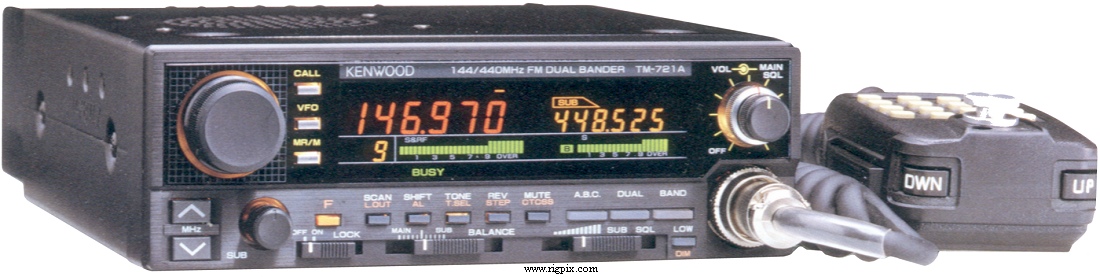

| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
USA
TX: 144-148 / 438-450 MHz
RX: 144-148 / 438-450 MHz
Other markets
TX: 144-148 / 430-440 MHz
RX: 144-148 / 430-440 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 KHz |
| Frequency stability: | ±10 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
14 regular (0-d) of which #1 functions as priority channel
1 call
2 band edge search limits
2 odd repeater split
RAM storage with lithium battery backup
|
| Repeater shift / offset: | 2 m: ±600 KHz
70 cm: ±5 MHz |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Less than 600 mA (No signal)
TX: Less than 9.5 A |
| Antenna impedance / connector: | 50 ohm / One N-jack and one SO-239 |
| Dimensions (W*H*D): | 150*50*219 mm (5.91*1.97*8.62") |
| Weight: | 1.8 Kg (3.97 lb) |
| Other features: | CTCSS/PL encoder. Twin RX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne, USA
1st IF: 16.9 MHz (2 m) - 21.6 MHz (70 cm)
2nd IF: 455 KHz
Double conversion superheterodyne, Other markets
1st IF: 10.7 MHz (2 m) - 30.825 MHz (70 cm)
2nd IF: 455 KHz
|
| Sensitivity: |
2 m: 0.2 uV (12 dB SINAD)
70 cm: 0.16 uV (12 dB SINAD)
|
| Squelch sensitivity: | 0.09 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 12 KHz (-6 dB)
24 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 45 W | 5 W |
| 70 cm: | 35 W | 5 W |
|
| Modulation system: | Reactance modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1988-19xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
MA-700
MB-11
MC-48B
MC-55
MC-60A
MC-80
MC-85
PG-2N
PG-3B
PS-50
PS-430
RC-10
SP-41
SP-50B
SP-430
SW-100B
SW-200B
TSU-6
|
Dual band mobile antenna with duplexer
Mobile mounting bracket
Hand microphone with up/down and DTMF keypad
Mobile microphone with up/down buttons
Desk microphone with up/down and lock buttons
Desk microphone with up/down and lock buttons
High class electret desk microphone
DC power cable
DC line noise filter
Heavy duty DC power supply
DC power supply
Remote controller with DTMF/autopatch
Mobile speaker, 4 ohm
Mobile speaker, 8 ohm
External speaker
Compact SWR/Power/Volt meter, 140-450 MHz
SWR/power meter. Peak or RMS. 140-450 MHz
CTCSS/PL tone decoder unit
|
|
