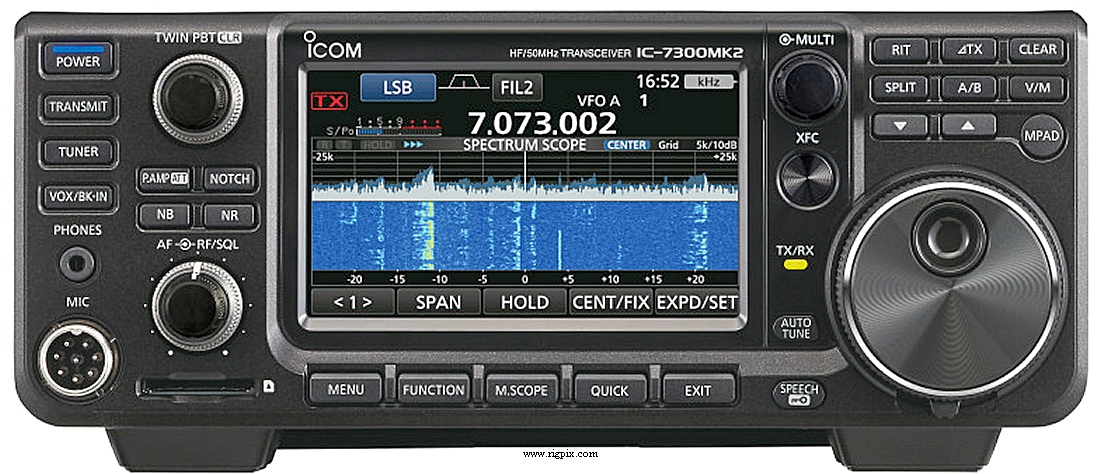

| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: HF / 6 m (Also 4 m for european version)
RX: 0.03-74.8 MHz
|
| Tuning steps: | Down to 1 Hz |
| Frequency stability: | Less than ±0.5 ppm @-10 to +60°C (14 to 140°F) |
| Mode: | AM / FM / SSB / CW / RTTY |
| Channels / memory management: |
99 regular with alpha tags (10 characters)
2 scan edge
Non-volatile EEPROM storage
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 0.7-1.25 A
TX: Max 21 A |

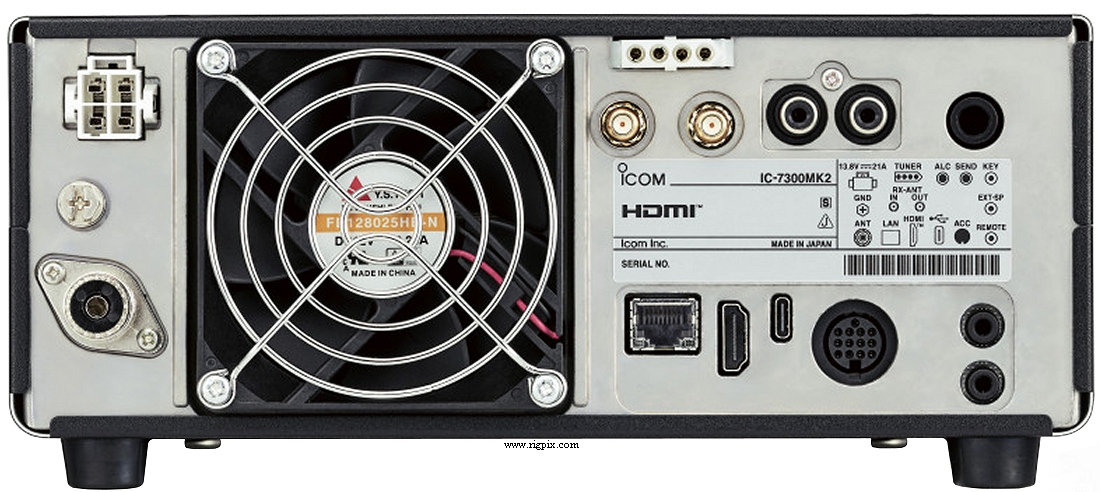

| Antenna impedance / connector: | 50 ohm (16.7-150 ohm with ATU on) / SO-239 + two SMA jacks (RX) |
| Dimensions (W*H*D): | 240*94*238 mm (9.45*3.7*9.4") |
| Weight: | 4.1 Kg (9 lb) |
| Other features: |
4.3" touch-TFT. CTCSS/PL. High performance real-time band scope.
Built-in ATU and keyer. USB-C connector for audio in/out and CI-V.
CW and RTTY-decoder. HDMI port. RX antenna in/out.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Direct sampling superheterodyne
IF: 12 KHz
|
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 12.6 uV
1.8-30 MHz: 2 uV
6 m: 1 uV
4 m: 1 uV (European version only)
FM (12 dB SINAD)
28-29.7 MHz: 0.5 uV
6 m: 0.25 uV
4 m: 0.25 uV (European version only)
SSB/CW (10 dB S/N)
1.8-30 MHz: 0.16 uV
6 m: 0.13 uV
4 m: 0.16 uV (European version only)
|
| Squelch sensitivity: |
Threshold (HF: Preamp.1 on. 6 and 4 m: Preamp.2 on)
FM: Less than 0.3 uV
SSB: Less than 5.6 uV
|
| Noise figure: | |
| Selectivity: |
AM (Filter: Sharp, BW: 6 KHz)
6 KHz (-6 dB)
10 KHz (-40 dB)
FM (Filter: Sharp, BW: 15 KHz)
12 KHz (-6 dB)
22 KHz (-40 dB)
SSB (Filter: Sharp, BW: 2.4 KHz)
2.4 KHz (-6 dB)
3.4 KHz (-40 dB)
CW (Filter: Sharp, BW: 500 Hz)
500 Hz (-6 dB)
700 Hz (-40 dB)
RTTY (Filter: Sharp, BW: 500 Hz)
500 Hz (-6 dB)
800 Hz (-40 dB)
|
| Image rejection: | 70 dB (Except for ADC aliasing: 124.032 MHz-RX frequency) |
| AF output power / speaker: | 2.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| HF | 6 m | 4 m |
|---|
| AM: | 0.12-25 W | 0.12-25 W | 0.08-12.5 W |
| FM: | 0.6-100 W | 0.6-100 W | 0.3-50 W |
| SSB (PEP): | 0.6-100 W | 0.6-100 W | 0.3-50 W |
| CW: | 0.6-100 W | 0.6-100 W | 0.3-50 W |
| RTTY: | 0.6-100 W | 0.6-100 W | 0.3-50 W |
NB! The 4 m band is only available for the european version
|
| Modulation system: |
AM: Digital low power modulation
FM: Digital reactance nodulation
SSB: Digital PSN modulation
|
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: |
1.8-28 MHz: Better than -50 dB
50 MHz: Better than -63 dB
70 MHz: Better than -60 dB
|
| Microphone impedance / connector: | 600 ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2025-202x |
| Additional info: |
This updated version include some additional and enhanced features such as:
HDMI port for external monitor
USB-C with dual COM + audio.
Improved reciprocal mixing dynamic range and phase noise characteristics.
Lower heat generation and lower power consumption.
RX antenna in/out SMA connectors.
Added CW decoder.
Simplified RS-BA1 remote control.
Ethernet port.
|
| Related documents: |
Pre-release info (1 MB)
User manual (10.9 MB)
Advanced manual (12 MB)
CI-V reference (2.4 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AH-710
AH-730
AH-740
HM-219
IC-PW2
MB-118
MB-123
OPC-599
RS-BA1 version 2
SM-30
SM-50
SP-33
SP-35
SP-35L
SP-38
SP-41
|
Folded dipole antenna, 2-30 MHz
Automatic antenna tuner, HF and 6 m
Automatic tuning antenna
Standard hand microphone
Linear amplifier. HF / 6 m, 1 KW
Mounting bracket
Carrying handle
Adapter cable. 13-pin ACC to 7+8-pin ACC connectors
Remote control software
Desk microphone
Desk microphone
External speaker for base operation
External speaker for mobile operation
External speaker for mobile operation
External speaker, designed to match the transceiver
External speaker for base operation
|
|
