| Type: | Amateur HF/VHF linear amplifier |
| Frequency range / band(s): | 10-160 m + WARC / 6 m |
| Output power: | 1 KW @ 200 VAC
500 W @ 100 VAC
100% duty cycle! |
| Drive power: | Max ? W |
| Power supply: | Mains: 90-132 / 180-264 VAC |
| Current drain / power consumption: | ? A |

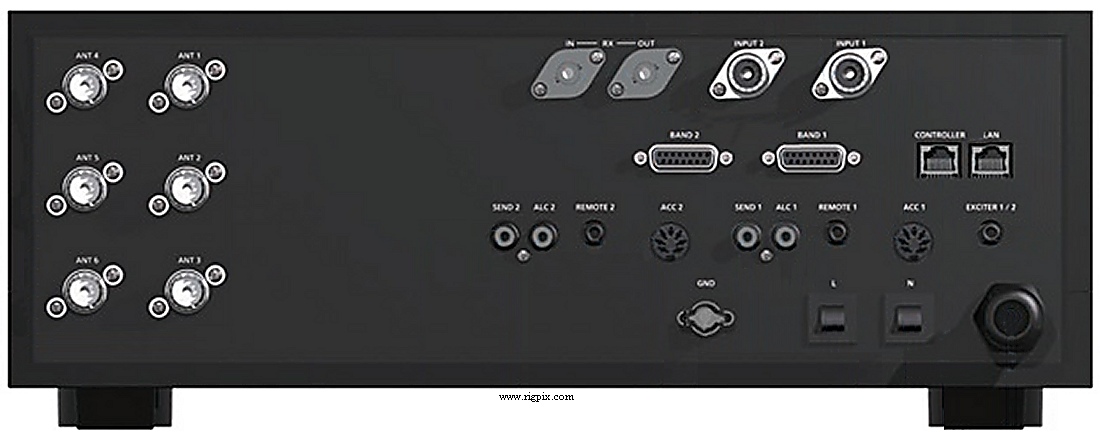

| Impedance/ c onnectors: | 50 ohm (16.7-150 ohm) / Six SO-239 antenna connectors
Two SO-239 transceiver inputs for SO2R operation |
| Dimensions (W*H*D): | 425*149*435 mm (16.73*5.87*17.13") |
| Weight: | ? Kg (? lb) |
| Manufactured: | Japan, 2019-202x |
| Other: |

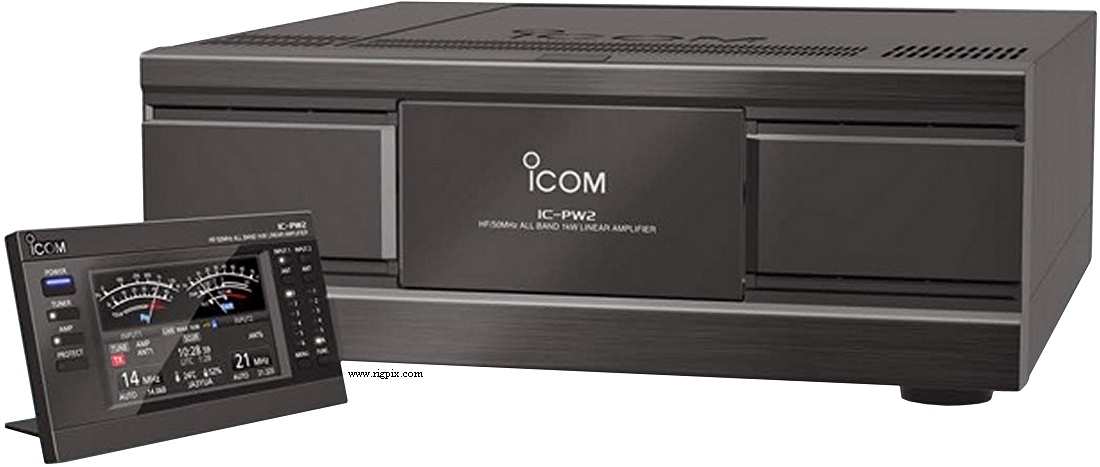

Built-in auto tuner. Detachable front panel.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
