| GENERAL |

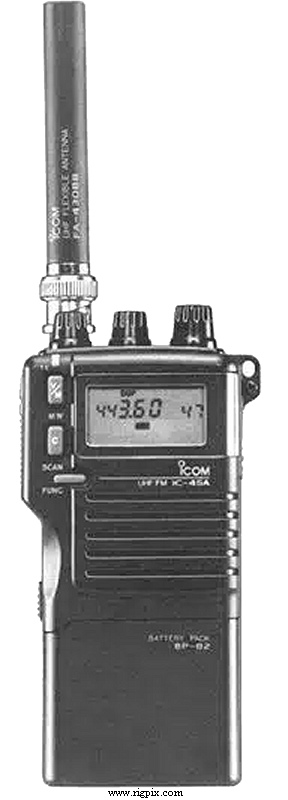

| Type: | Amateur UHF transceiver |
| Frequency range: |
USA
TX: 440-450 MHz
RX: 440-450 MHz
Australia and Asia
TX: 430-440 MHz
RX: 430-440 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 20 / 100 KHz |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: |
48 regular
1 call
RAM storage with lithium battery backup
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.2-12 VDC (Depending on battery pack)
or 6-16 VDC external |
| Current drain / power consumption: | RX: 19-250 mA
TX: Max 1.6 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 49*103*33 mm (1.93*4.06*1.3"), with BP-82 |
| Weight: | 270 g (9.52 oz), with BP-82 |
| Other features: | Clock and timer. CTCSS/PL option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.875 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 200 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High
@13.8 V | High
@7.2 V | Low 3
@13.8 V | Low 3
@7.2 V | Low 2 | Low 1 |
|---|
| 70 cm: | 5 W | 2 W | 3.5 W | 2 W | 1.5 W | 500 mW |
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1989-199x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (1.9 MB)
Tech talk (5.8 MB)
Service manual (21.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BP-81
BP-82
BP-83
BP-84
BP-85
BP-90
UT-50
UT-51
|
NiCd battery pack. 7.2 V, 110 mAh
NiCd battery pack. 7.2 V, 300 mAh
NiCd battery pack. 7.2 V, 600 mAh
NiCd battery pack. 7.2 V, 1000 mAh
NiCd battery pack. 12 V, 340 mAh
Battery case. Six LR6/AA batteries
CTCSS/PL tone squelch unit (Encoder/decoder)
CTCSS/PL encoder unit
|
|
