| GENERAL |

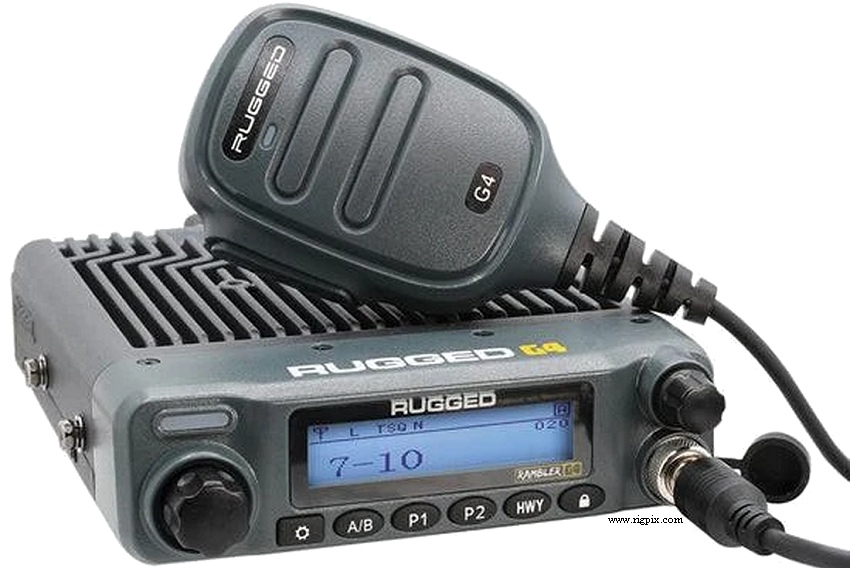

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 400-480 MHz
|
| Tuning steps: | TX: Channelized
RX: 12.5 KHz |
| Frequency stability: | ±2 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | FM / NFM |
| Channels / memory management: |
15 GMRS simplex (1-7 and 15-22)
8 GMRS repeater
2 quick access (P1 and P2)
1 HWY (Highway channel 19)
350 user programmable
Alpha tags
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 160-400 mA
TX: Max 9 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 138*53*153 mm (5.43*2.09*6.02") |
| Weight: | 1.16 Kg (2.55 lb) |
| Other features: |
CTCSS/PL and DCS. Roger beep. Dual watch. Dimmer.
Three selectable backlite colors. Voice guide. Intercom jack.
PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel @ 12.5 KHz |
| Image rejection: | |
| AF output power / speaker: | 3 W at 5% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM (Wide): ±5 KHz
NFM (Narrow): ±2.5 KHz |
| Spurious emissions: | Less than -30 dBm |
| Microphone impedance / connector: | ? ohm / 6-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2024-202x |
| Reset procedure: |
Select "Advanced menu". Select "Reset". Select "Settings" and
confirm. This will reset the radio to its factory settings.
|
| Additional info: |
FCC ID: 2AWYH-GMR04
New price, october 2026 in the US: $295.00
|
| Related documents: |
User manual (2.4 MB)
Quick start manual (1.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CJ-M1
RRS-G4
USB-54
|
Intercom adapter cable
Programming software (Windows or MacOS)
USB programming cable
|
|
