| GENERAL |

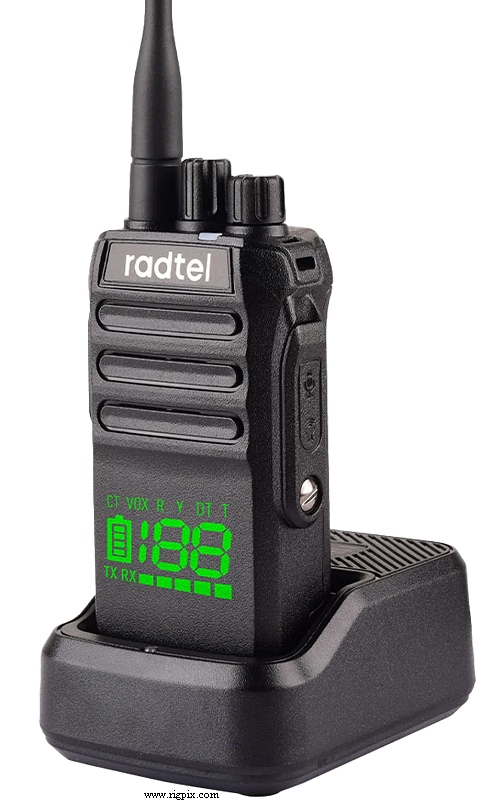

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 400-470 MHz
|
| Tuning steps: | Channelized (Programmable in ? KHz steps) |
| Frequency stability: | ±? ppm |
| Mode: | FM / NFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
169 user programmable
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SMA male |
| Dimensions (W*H*D): | 62*123*40 mm (2.44*4.84*1.57") |
| Weight: | 281 g (9.9 oz) |
| Other features: |
CTCSS/PL and DCS. VOX. Over-the-air frequency copy.
IP67 waterproof. Frequency hopping. Scrambler.
USB-C charging. Voice guide. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne (Direct conversion)
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2023-202x |
| Additional info: |
New price, october 2025 in the US: $35.99
|
| Related documents: | User manual (38 MB, Multilanguage) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
