| GENERAL |

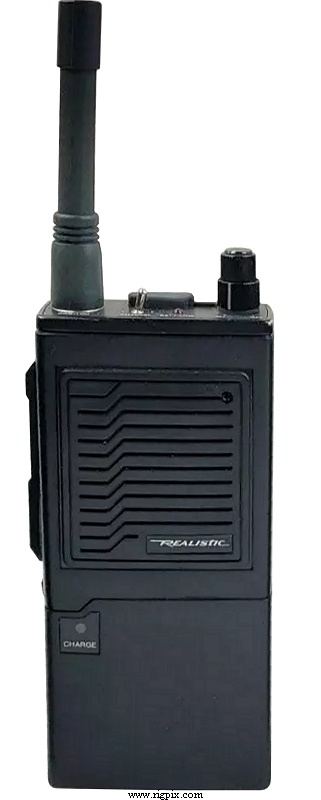

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462.6375 and 462.7125 MHz
RX: 462.6375 and 462.7125 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±0.0005% @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
2 regular
Two XTALs per channel
|
| Repeater capable: | No |
| Power supply: | 6 VDC (NiCd battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 64*140*25 mm (2.5*5.5*1") |
| Weight: | 340 g (12 oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21 4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.3 uV (Threshold) |
| Selectivity: | |
| Image rejection: | 50 dB |
| AF output power / speaker: | 125 mW at 10% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Korea (By Maxon), 1992-199x (Discontinued) |
| Additional info: |
FCC ID: AAO19-900
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
