| GENERAL |

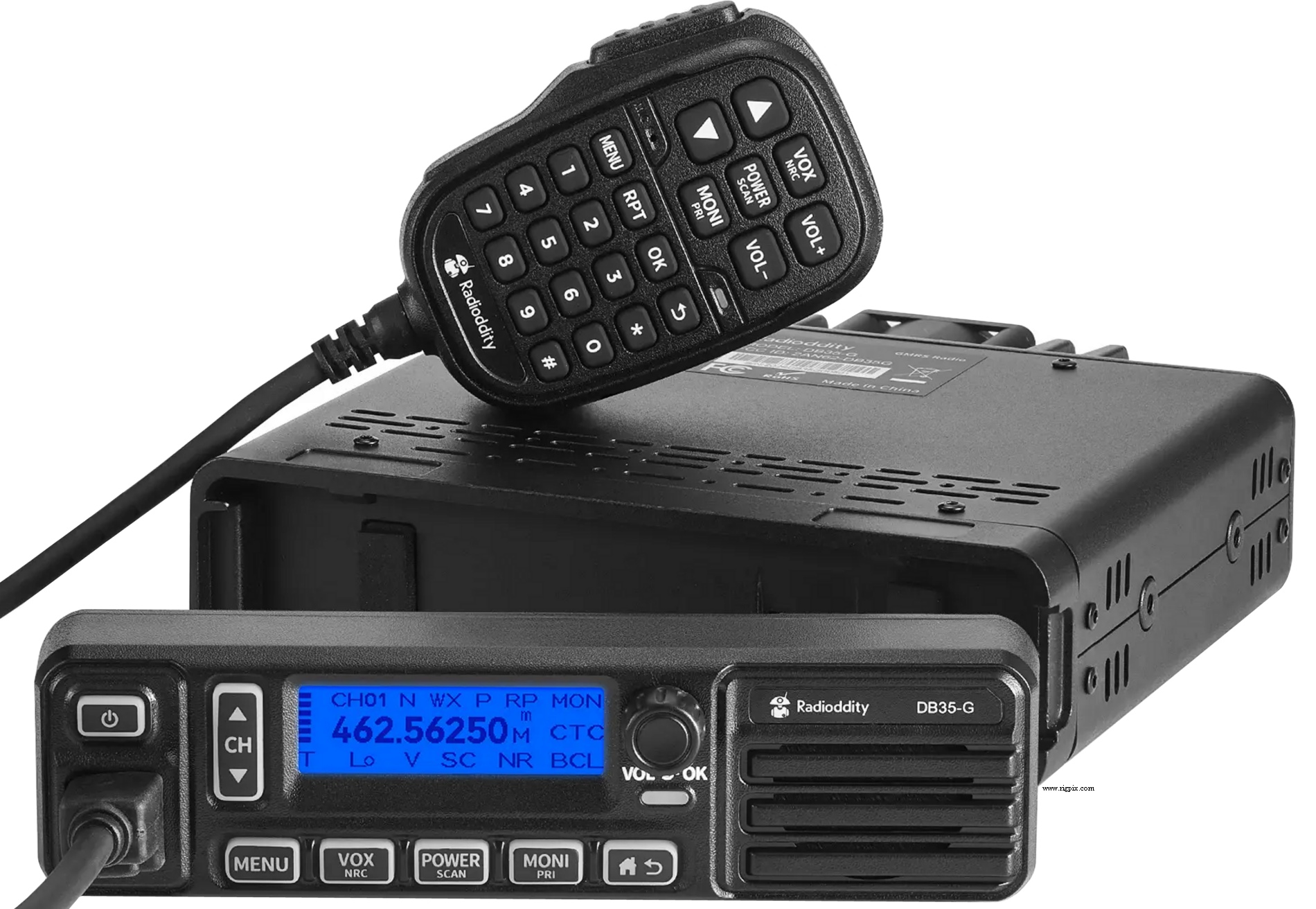

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 136-174 / 400-470 MHz
|
| Tuning steps: | TX: Channelized
RX: 2.5 / 5 / 6.25 / 12.5 / 25 / 50 / 100 KHz |
| Frequency stability: | ±300 Hz @ -30 to +60°C (-22 to +140°F) |
| Mode: | FM / NFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
10 NOAA weather channels
50 user programmable
Priority function
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 360 mA (Squelched)
TX: Max 10 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 169*46*167 mm (6.7*1.8*6.6") |
| Weight: | ? Kg (? lb) |
| Other features: |
CTCSS/PL and DCS. 7 selectable backlite colors. VOX.
Noise reduction (NRC). Detachable front panel.
NOAA weather alert. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -50 dBc |
| Microphone impedance / connector: | ? ohm / 8-pin (RJ45 modular jack) |
| Microphone input level: | 5-10 mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2026-202x |
| Additional info: |
FCC ID: 2AN62-DB35G
New price, april 2026 in the US: $189.99
|
| Related documents: |
User manual (9.9 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
