| GENERAL |

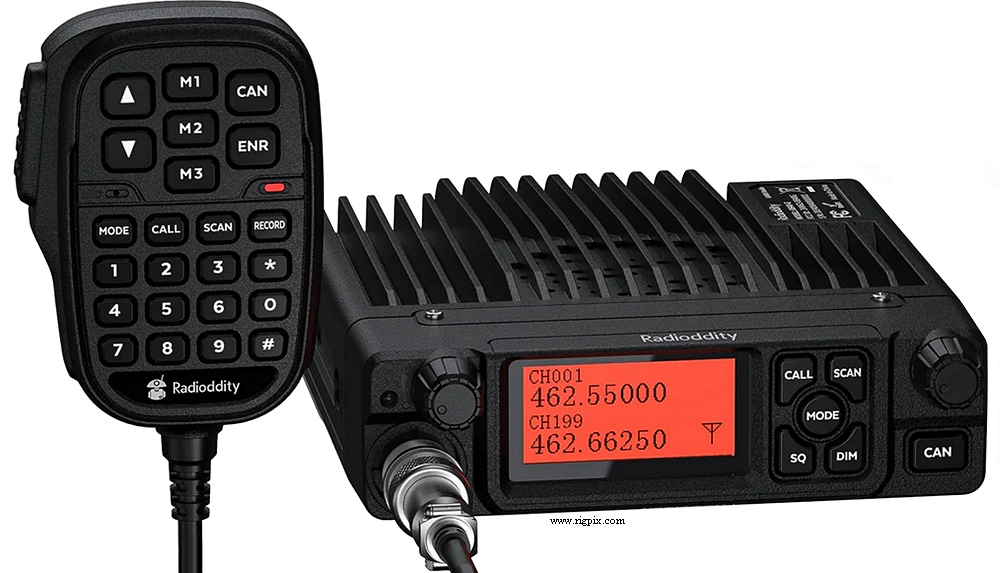

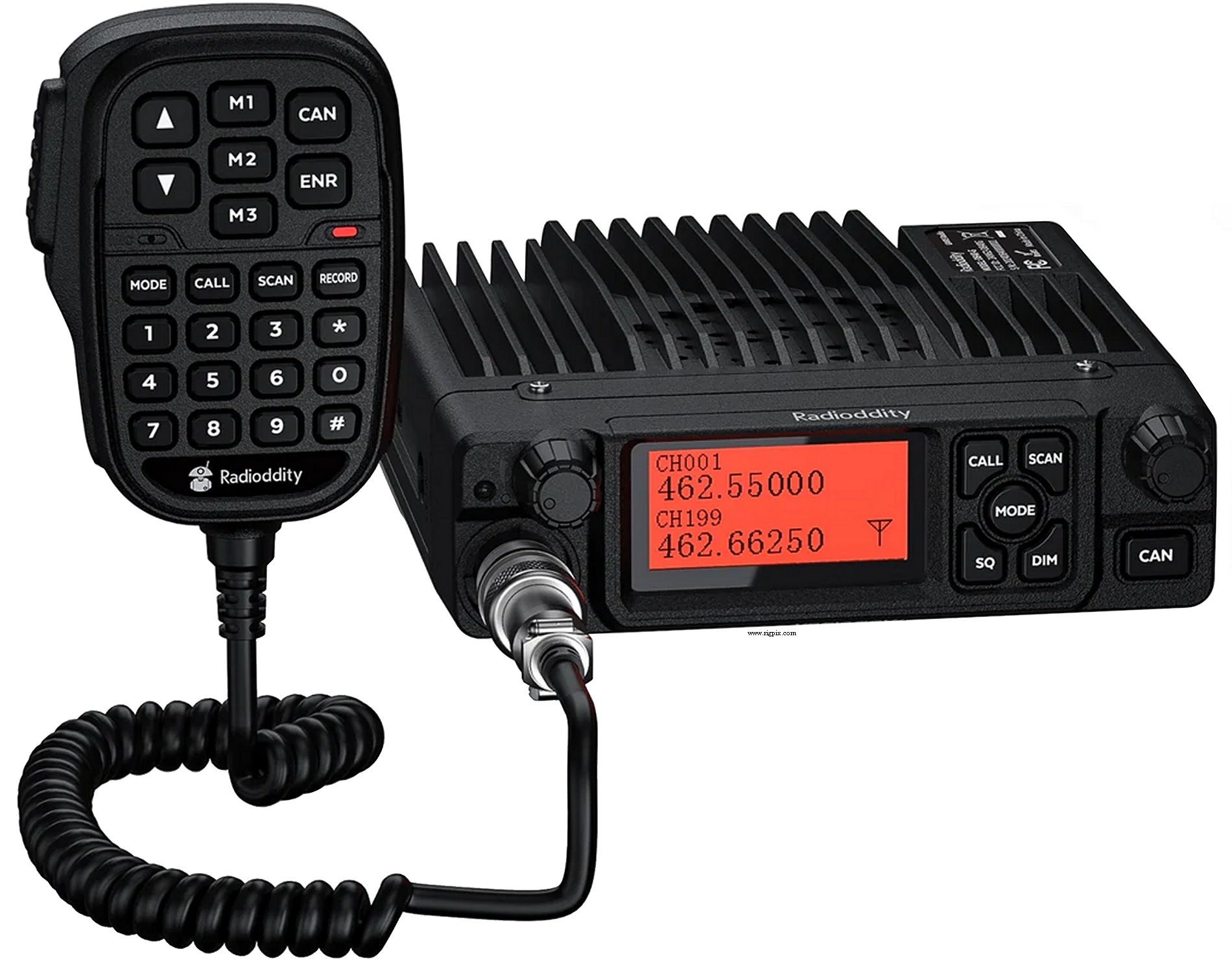

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 400-480 MHz
|
| Tuning steps: | TX: Channelized
RX: 5 / 6.25 / 12.5 / 25 KHz |
| Frequency stability: | ±2.5 ppm |
| Mode: | FM / NFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
169 user programmable
Alpha tags (8 characters)
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: ? mA
TX: Less than 10 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: |
CTCSS/PL and DCS. Dual watch. 5 call tones. VOX.
PC programmable. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
400-420 MHz: 0.3 uV (12 dB SINAD)
420-470 MHz: 0.25 uV (12 dB SINAD)
|
| Squelch sensitivity: | Less than 0.2 uV (Threshold) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2024-202x |
| Additional info: |
FCC ID: 2AN62-DB40G
New price, october 2025 in the US: $179.99
|
| Related documents: | User manual (309 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
