| GENERAL |

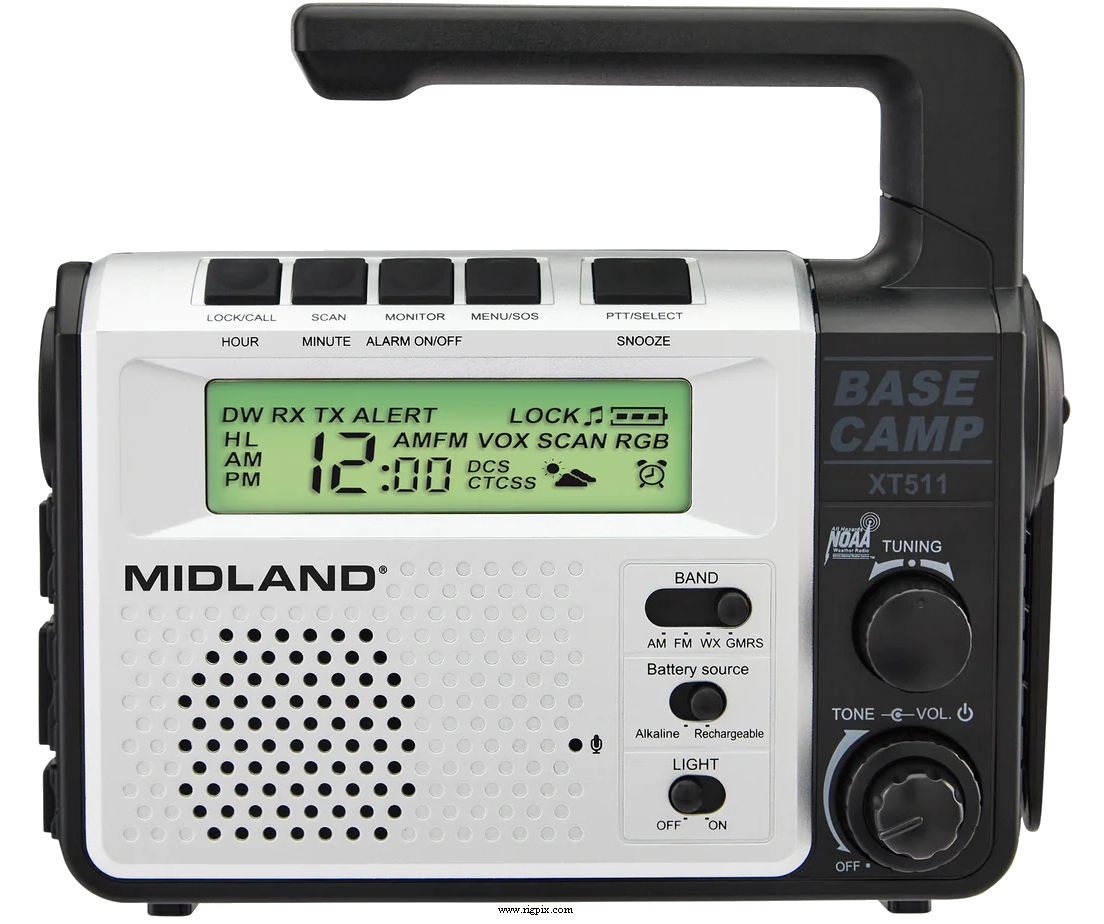

| Type: | Portable GMRS / FRS dual standard base camp transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 0.52-1.71 / 87.5-108 / 161.650-163.275 / 462 / 467 MHz
|
| Tuning steps: | TX: Channelized
RX: 10 KHz (AM), 100 KHz (WFM) |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM / WFM |
| Channels / memory management: |
22 regular
10 NOAA weather channels
Scanning
|
| Repeater capable: | No |
| Power supply: |
6 VDC (Four LR6 / AA alkaline batteries)
or NiMH battery pack
or external PSU

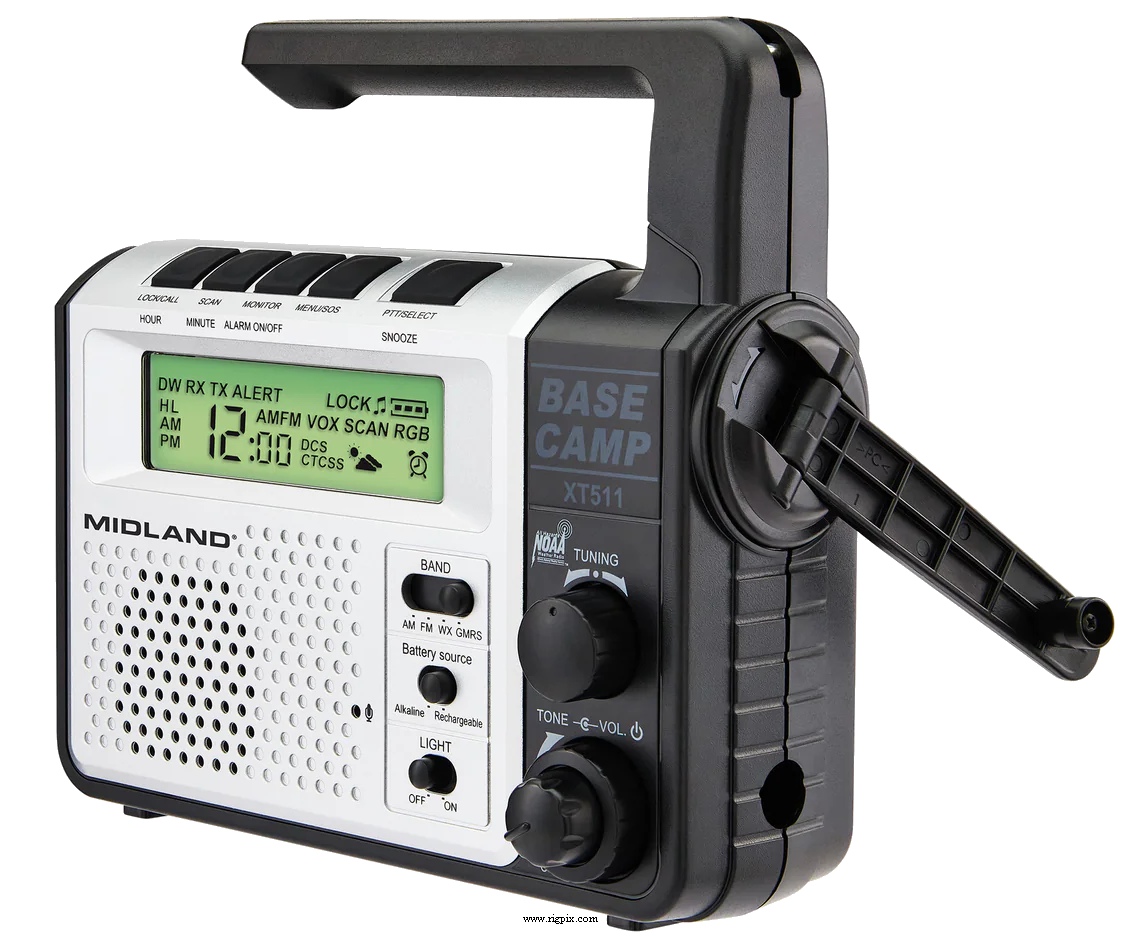

or dynamo crank (Can also charge the NiMH pack)
|
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / Foldable non-removable antenna
Internal ferrite bar for the AM band |
| Dimensions (W*H*D): | 184*162*70 mm (7.25*6.38*2.75") |
| Weight: | ? Kg (? lb) |
| Other features: |
CTCSS/PL and DCS. LED Flashlight. NOAA weather alert.
Alarm clock. VOX. Dual watch. 10 call tones. SOS siren.
USB jack. Roger beep.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Early version: Double conversion superheterodyne (FM / NFM)
1st IF: ? MHz
2nd IF: 450 KHz
Later version: ?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Early: 2007-201x (Discontinued)
Later: 2017-202x |
| Additional info: |
FCC ID: MMAXT511 (Early)
FCC ID: MMAXT511A (Later)
New price, october 2025 in the US: $99.99
|
| Related documents: | User manual, later version (1.2 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AVP1
AVP7
AVPH2
AVPH3
AVPH4
AVPH5
AVPH7
AVPH8
AVPH10
|
Over-the-ear headset kit
A pair of NiMH battery packs
Helmet headset kit
Surveillance headset
Wrap-around-the-ear headset
Behind-the-head headset
Camo headset with boom microphone
Throat microphone
Shoulder speaker-microphone
|
|
