| GENERAL |
| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 161.650-163.275 / 462 / 467 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±? ppm |
| Mode: | NFM |
| Channels / memory management: |
15 GMRS simplex
8 GMRS repeater
10 NOAA weather channels
Scanning
|
| Repeater capable: | Yes |

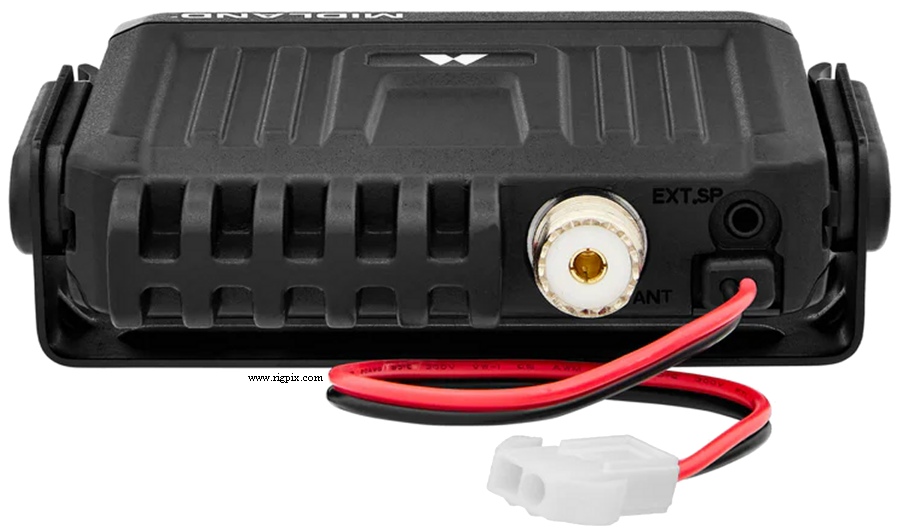

| Power supply: | 13.8 VDC (2-pin connector, on pigtail) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Radio unit: 128*37*108 mm (5.06*1.44*4.25") |
| Weight: | 590 g (1.3 lb), with remote control microphone |
| Other features: |
CTCSS/PL and DCS (Split tones, later version only). NOAA weather
alert. Roger beep. USB-C device charging (USB-A for the early version).
Call alert tone.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (RJ45 modular jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: |
Early version: 2018-2020 (Discontinued)
Later version: 2021-202x
|
| Additional info: |

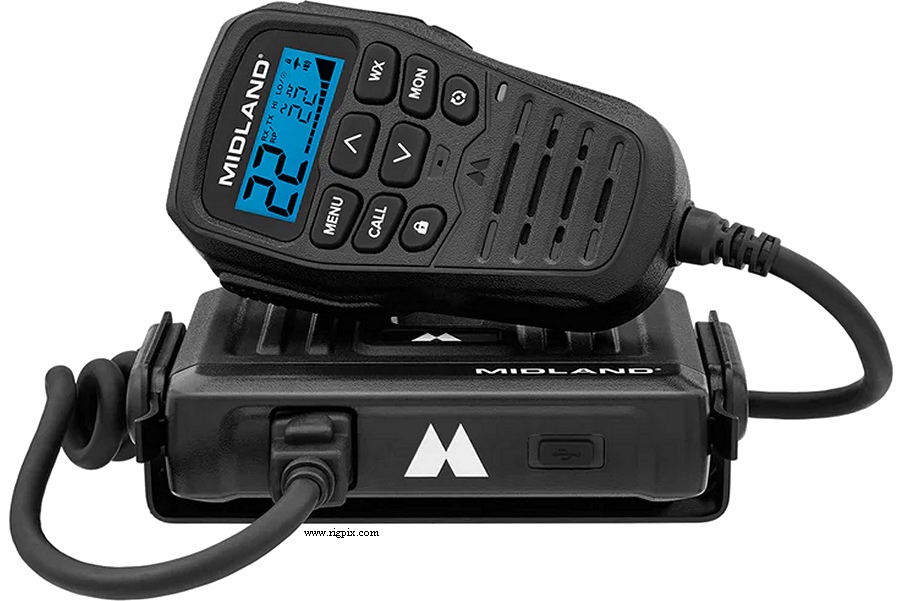

This radio is similar to MXT-115 but as a "black box" with a remote control
speaker-microphone.
New price, october 2025 in the US: $164.99 (With small magmount antenna)
|
| Related documents: | User manual (14.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
