| GENERAL |

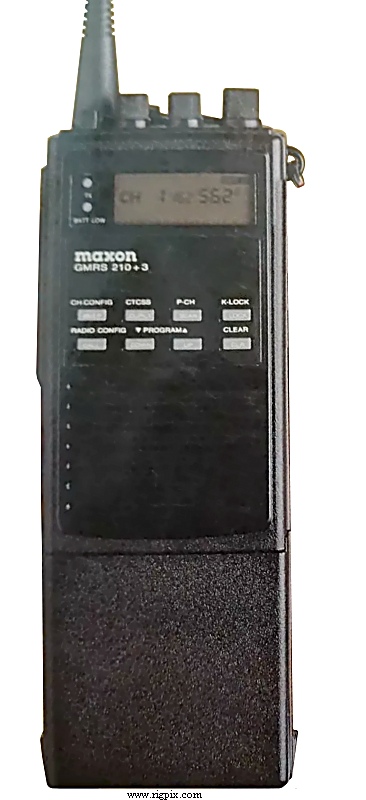

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 462 / 467 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
7 regular GMRS
1 emergency
2 dealer programmable
Scanning
Priority function
|
| Repeater capable: | Yes |
| Power supply: | 7.2-10.8 VDC (Various battery packs)
or 13.8 VDC external |
| Current drain / power consumption: | RX: 20-250 mA
TX: Less than 1.2 A @ 2 W output power |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | 510 g (18 oz) |
| Other features: | CTCSS/PL. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.35 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High
@13.8 V | High
@7.2 V | Low |
|---|
| 5 W | 2 W | ? W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Thailand, 1995-199x (Discontinued) |
| Additional info: |
New price, march 1995 in the US: $239.00
|
| Related documents: | User manual (253 KB) |
| Modifications and fixes: | |
| Reviews: | Popular Communications: Juli 1995, page 31 |
| Options / Accessories: |
DV-7210
WTA-6GA
WTA-6GN2
WTA-10G
WTA-13G
|
AC/DC adapter
Alkaline battery
NiCd battery
Speaker-microphone
Mini-VOX headset
|
|
