| GENERAL |

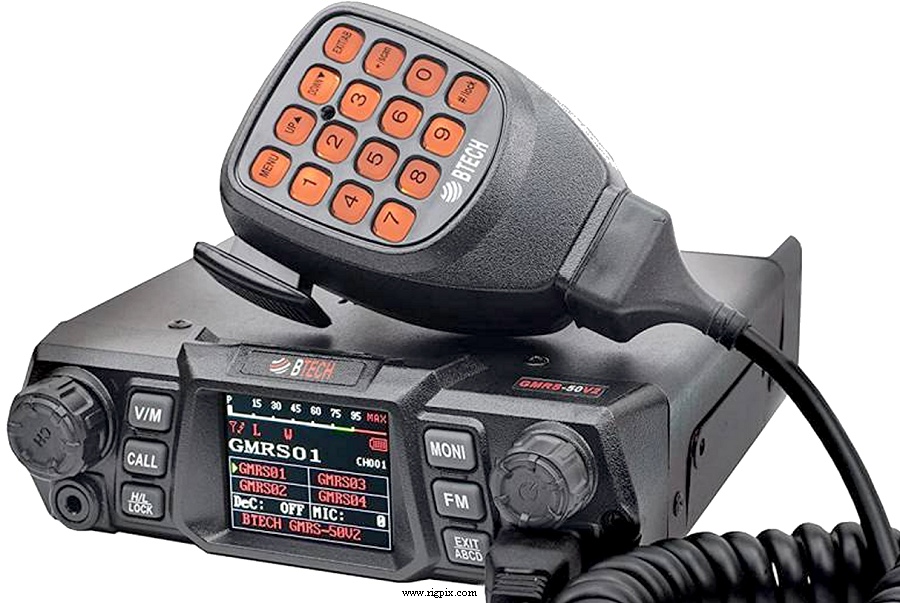

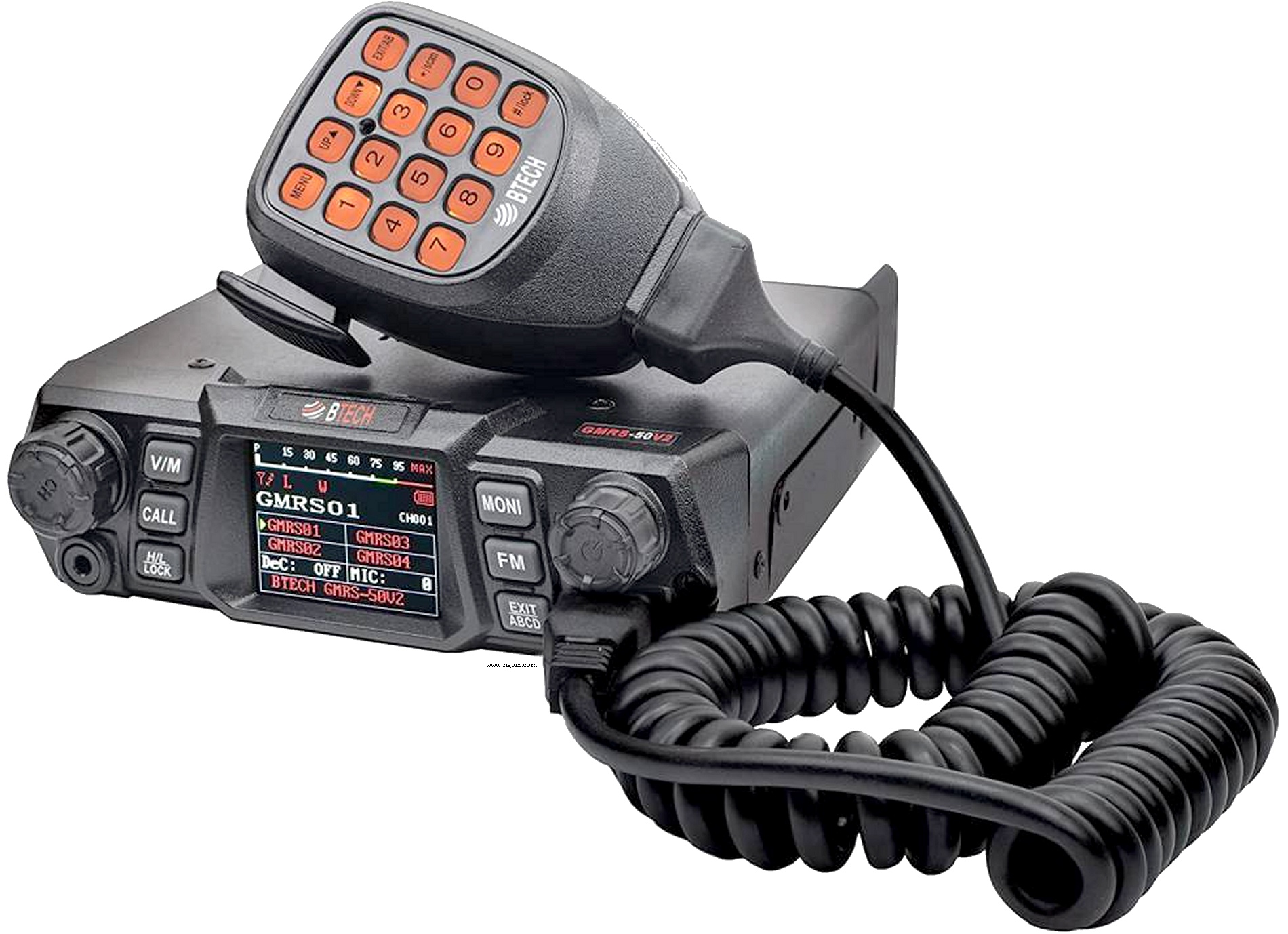

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 65-108 / 136-174 / 400-520 MHz
|
| Tuning steps: | Channelized (Programmable in 2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz steps) |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
256 user programmable
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 145*47*190 mm (5.7*1.85*7.5") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: |
CTCSS/PL and DCS. DTMF. 2-tone and 5-tone. Quad watch.
VOX. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne (Direct conversion)
|
| Sensitivity: |
FM: 0.25 uV (12 dB SINAD)
NFM: 0.35 uV (12 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / ? ohm |
| External speaker connector: | TRRS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (RJ45 modular jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (Designed in USA), 2023-202x |
| Additional info: |
New price, october 2025 in the US: $219.89
|
| Related documents: | User manual (2.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
