| GENERAL |

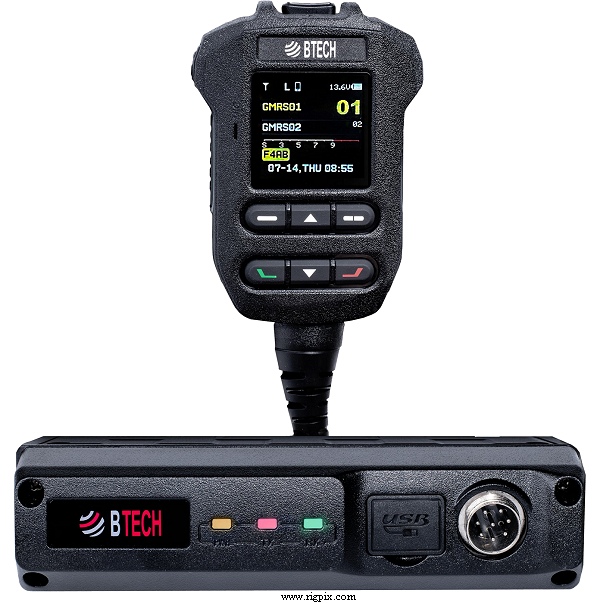

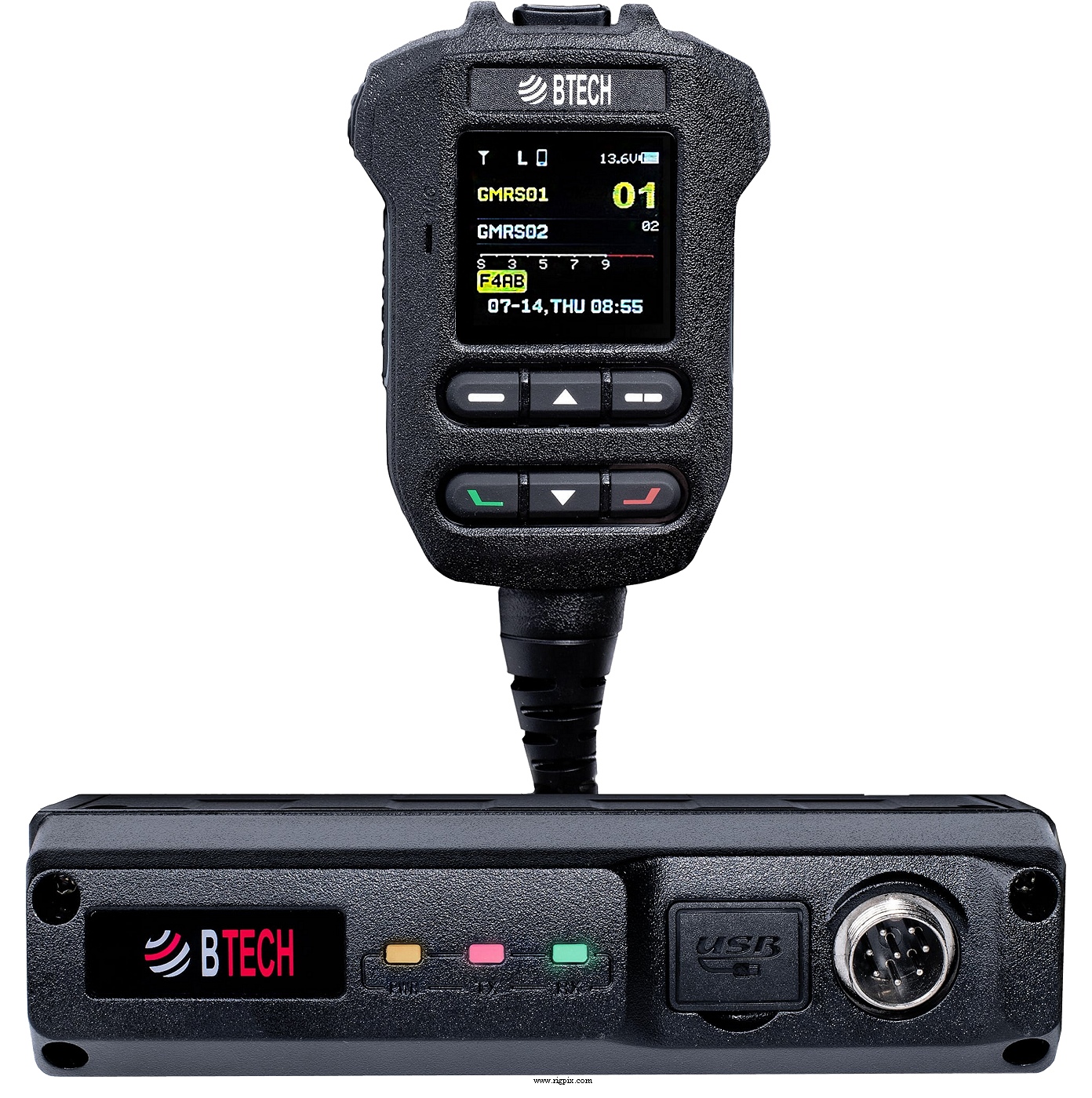

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 136-174 / 400-520 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
22 GMRS simplex
8 GMRS repeater
180 custom
7 NOAA weather channels
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 13.8 VDC ("T"-connector, on pigtail) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? mA |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | Radio unit: 150*46*140 mm (6*1.8*5.5") |
| Weight: | 1.1 Kg (2.5 lb), with microphone |
| Other features: |
CTCSS/PL and DCS with tone scan. DTMF. IP54 waterproof.
Bluetooth. GPS with location sharing. Compass. VOX.
Remote control microphone with color TFT. NOAA weather
alert. Roger beep. App programmable (iOS / Android).
USB-A jack for device charging. Audio relay. Dual watch.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC / Homodyne (Direct conversion)
|
| Sensitivity: |
FM: 0.2 uV (12 dB SINAD)
NFM: 0.22 uV (12 dB SINAD)
|
| Squelch sensitivity: | |
| Selectivity: | >65 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2024-20xx |
| Additional info: |
New price, october 2025 in the US: $284.89
|
| Related documents: | User manual (3.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
BS-22
|
Bluetooth speaker-microphone
|
|
