| GENERAL |

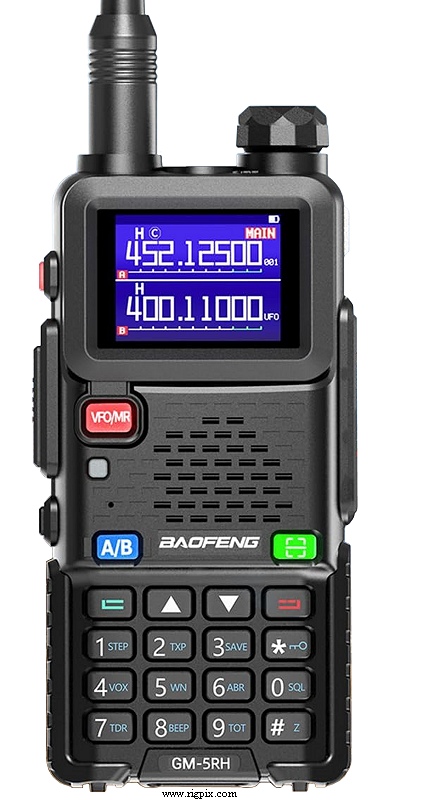

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 136-174 / 220-260 / 400-520 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 50 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
8 repeater
999 custom
10 NOAA weather channels
Scanning and dual watch
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: Less than 380 mA
TX: Less than 1.8 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 58*130*40 mm (2.28*5.12*1.57") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL and DCS with tone scan. DTMF. LED flashlight.
USB-C charging. Near field quick frequency copy. VOX.
Scrambler. Stopwatch. Roger beep. Call tone. Voice guide.
Frequency hopping(?!)
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / 16 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM:: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2024-202x |
| Additional info: | |
| Related documents: | User manual (1.3 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
