| GENERAL |

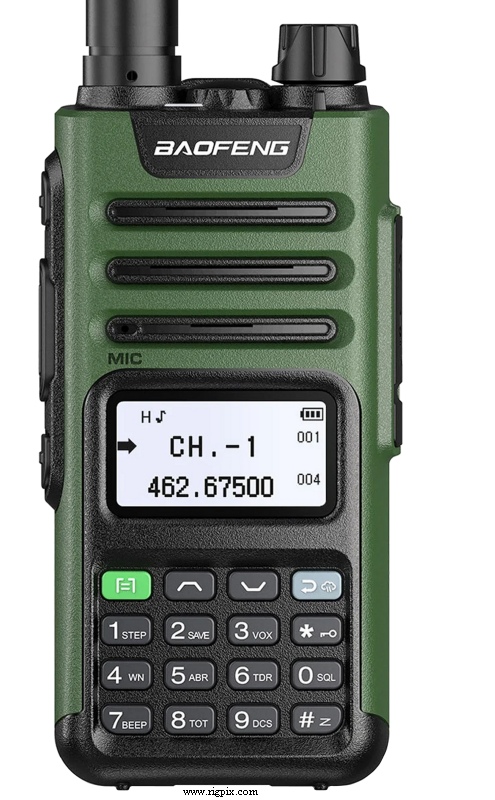

| Type: | GMRS transceiver |
| Frequency range: |
TX: 462 / 467 MHz
RX: 76-108 / 136-174 / 400-512 MHz
|
| Tuning steps: | Channelized or 2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +50°C (-4 to +122°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
30 GMRS
220 receive only
11 NOAA weather channels
Scanning
|
| Repeater capable: | Yes |
| Power supply: | 7.4 VDC (Li-Ion battery) |
| Current drain / power consumption: | RX: Less than 380 mA
TX: Less than 1.5 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL and DCS with tone scan. DTMF. USB-C charging.
VOX. Dual watch. Voice guide. LED flashlight. Roger beep.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | NFM: 55 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at 5% distortion / 16 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM:: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2024-202x |
| Additional info: | |
| Related documents: | User manual (1.4 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
