| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz
RX: 144-146 MHz |
| Tuning steps: | Channelized (VFO option) |
| Frequency stability: | |
| Mode: | FM |
| Channels / memory management: |
23 regular
1 "My channel" (General version only)
Two XTALs per channel
|

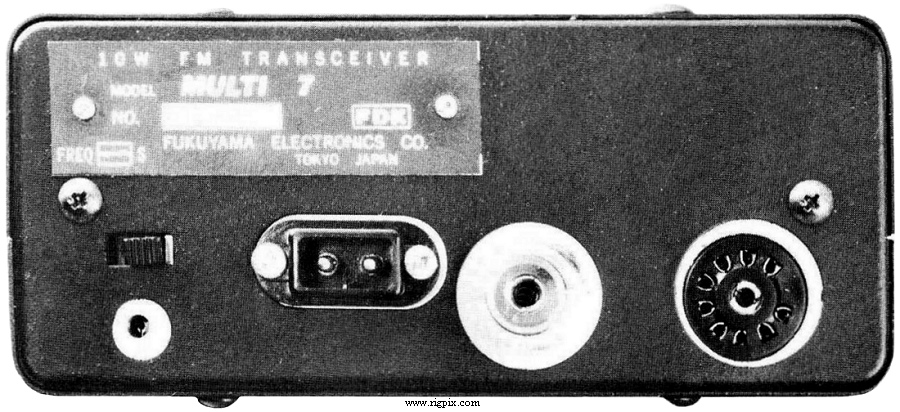

| Repeater shift / offset: | According to installed XTALs |
| Power supply: | 11-15 VDC (Male 2-pin jack) |
| Current drain / power consumption: | RX: 400 mA @ 13.5 VDC
TX: Max 2.3 A @ 13.5 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 134*58*216 mm (5.28*2.28*8.5") |
| Weight: | 1.6 Kg (3.53 lb) |
| Other features: |

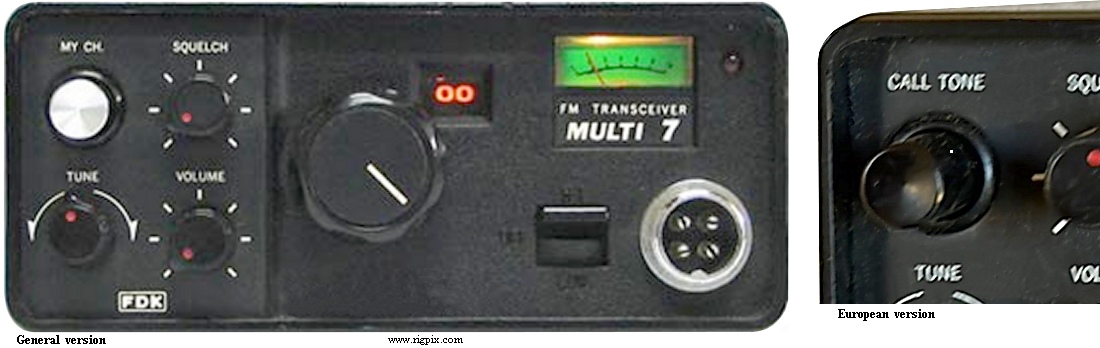

VOX. The european version had a 1750 Hz tone call instead of "My channel".
"Tune" control (RIT). Reversible speaker, can be located on the top or bottom
of the transceiver. S/Pwr/Center meter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (30 dB S/N) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 20 KHz (-6 dB)
38 KHz (-50 dB) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | Vector composite phase modulation |
| Max FM deviation (Factory set): | ±5 KHz (Adjustable up to ±12 KHz) |
| Spurious emissions: | Less than -60 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1975-197x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (6.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
