| GENERAL |

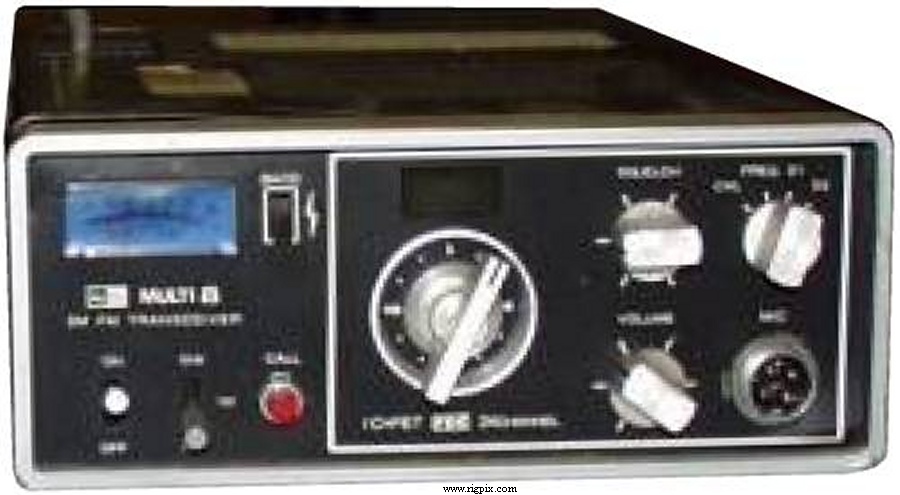

| Type: | Amateur VHF transceiver |
| Frequency range: | TX: 144-146 MHz
RX: 144-146 MHz |
| Tuning steps: | Channelized (VFO option) |
| Frequency stability: | Max ? ppm |
| Mode: | FM |
| Channels / memory management: | 23 regular
Two XTALs per channel |
| Repeater shift / offset: | According to installed XTALs |
| Power supply: | Mains or 13.5 VDC |
| Current drain / power consumption: | RX: 500 mA @ 13.5 VDC
TX: Max 2.3 A @ 13.5 VDC |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 179*75*247 mm (7.05*2.95*9.72") |
| Weight: | 4 Kg (8.82 lb) |
| Other features: | 1750 Hz tone call. VOX. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (20 dB S/N) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 20 KHz (-6 dB)
38 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 1.5 W at 10% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 10 W | 3 W | 1 W |
|
| Modulation system: | Vector phase |
| Max FM deviation (Factory set): | ±6 KHz |
| Spurious emissions: | Less than -70 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (10.9 MB)
Schematic diagram (1.9 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
