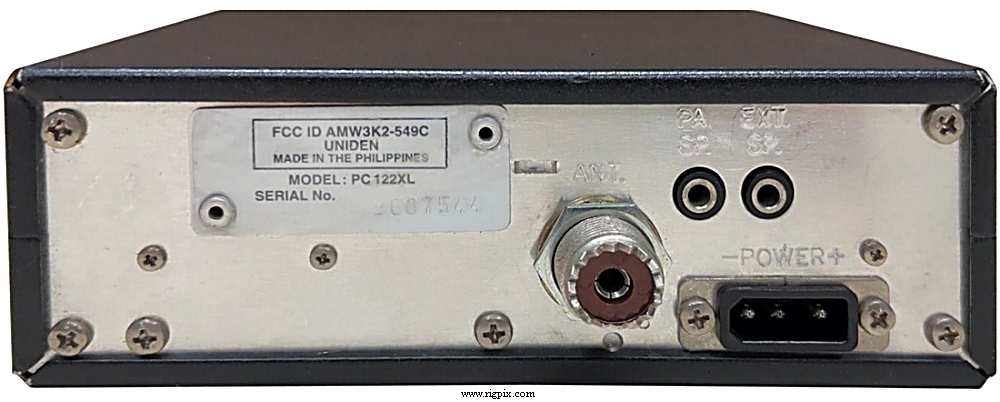

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (uPD2824C) |
| Frequency stability: | 0.005% @ -10 to +50°C (14 to 122°F) |
| Clarifier or Delta tune: | ±1.5 KHz |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 2.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 152*51*190 mm (6*2*7.5") |
| Weight: | 1.19 Kg (2.62 lb) |
| Other features: | PA. ANL/NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 10.695 MHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: |
AM/SSB:
4.2 KHz (-6 dB)
7 KHz (-60 dB)
|
| Image rejection: | 75 dB |
| AF output power / speaker: | 3 W at 10% distortion / 16 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | Class B amplitude modulation |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Philippines, 1988-199x (Discontinued) |
| Main PCB: | PB-122 by Uniden |
| Sub PCBs: |
PB-079 - LED channel display board
PB-225 - Channel selector board
PB-241 - Front panel board
PC-834 - Shorting bar board
|
| Additional info: |
Was available with either silver or black faceplate.
|
| Related documents: |
User manual (3.1 MB)
Schematic diagram (657 KB)
PLL: uPD2824C
AF amplifier: uPC1242H
RF driver: 2SC2166C
RF final: 2SC2312C
|
| Known markets and approvals: |
USA
FCC ID: AMW3K2-549C
Australia
DOTAC
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
