| GENERAL |

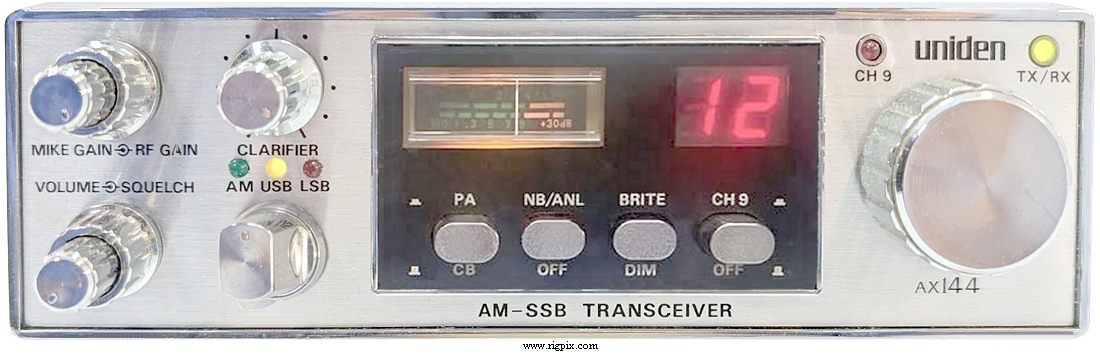

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM / SSB |
| Frequency control: | PLL (uPD2824C) |
| Frequency stability: | 0.001% @ -10 to +50°C (14 to 122°F) |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | 11.7-15.9 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 2.2 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 185*58*231 mm (7.3*2.3*9.1") |
| Weight: | 2.04 Kg (4.5 lb) |
| Other features: | PA. ANL/NB. Channel 9 button. Dimmer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 10.695 MHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
|
| Squelch sensitivity: | Less than 0.5 uV (Threshold) |
| Selectivity: | AM and SSB: 4.2 KHz (-6 dB)
7 KHz (-60 dB) |
| Image rejection: | 75 dB |
| AF output power / speaker: | 3 W at 10% distortion / 16 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: | AM: High and low level Class B
SSB: Balanced |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Less than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan (Early) and Philippines (Later & final), 1981-199x (Discontinued) |
| Main PCB: |
Early and later
PC-833AD by Uniden
Single sided with through-hole components
Final revision
PC-? by Uniden
Single sided with through-hole components
|
| Sub PCBs: |
PB-006AA - Mode switch and LED board
PB-007AA - Channel display and LED board
PB-008AA - Channel selector board
PB-009AA - Push switch board
PC-266AA - Mike jack board
|
| Additional info: | |
| Related documents: |
User manual (3.4 MB)
Service manual (11.9 MB)
PLL: uPD2824C
AF amplifier: uPC1182H (Early and later)
AF amplifier: uPC1242H (Final revision)
RF driver: 2SC2166C
RF final: 2SC2312C
|
| Market(s) / Approval(s): |
USA

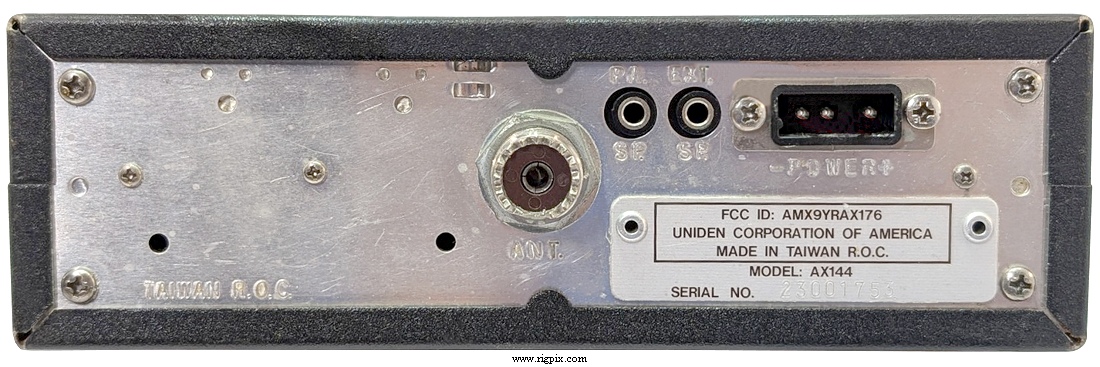

FCC ID: AMX9YRAX176
Australia
DOC ID: 249A016 (Early)
DOC ID: RB249A037 (Final revision)
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
