| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 1 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 7.2-9 VDC (Six R6 / AA batteries or NiCd pack)
or 9 VDC external (Male barrel jack, center positive) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | Built-in telescopic whip |
| Dimensions (W*H*D): | 72*190*50 mm (2.83*7.48*1.97") |
| Weight: | 625 g (1.38 lb), without batteries |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 1.5 uV (No S/N reference) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 130 mW at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~120 mW (200 mW input) |
| Modulation system: | |
| Max AM modulation (Factory set): | ?% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / Internal only |
| Microphone input level: | - |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1970-1971 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |

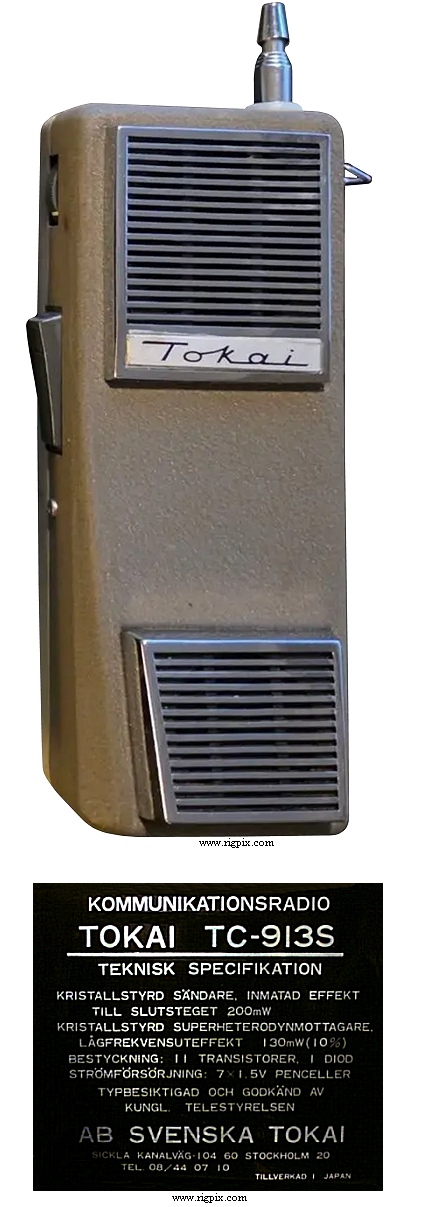

The rear label says seven penlight batteries, but
this is wrong. There is only room for six batteries.
New price 1970 in Sweden: SEK 295:- + moms (VAT)
|
| Related documents: | |
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
