| GENERAL |

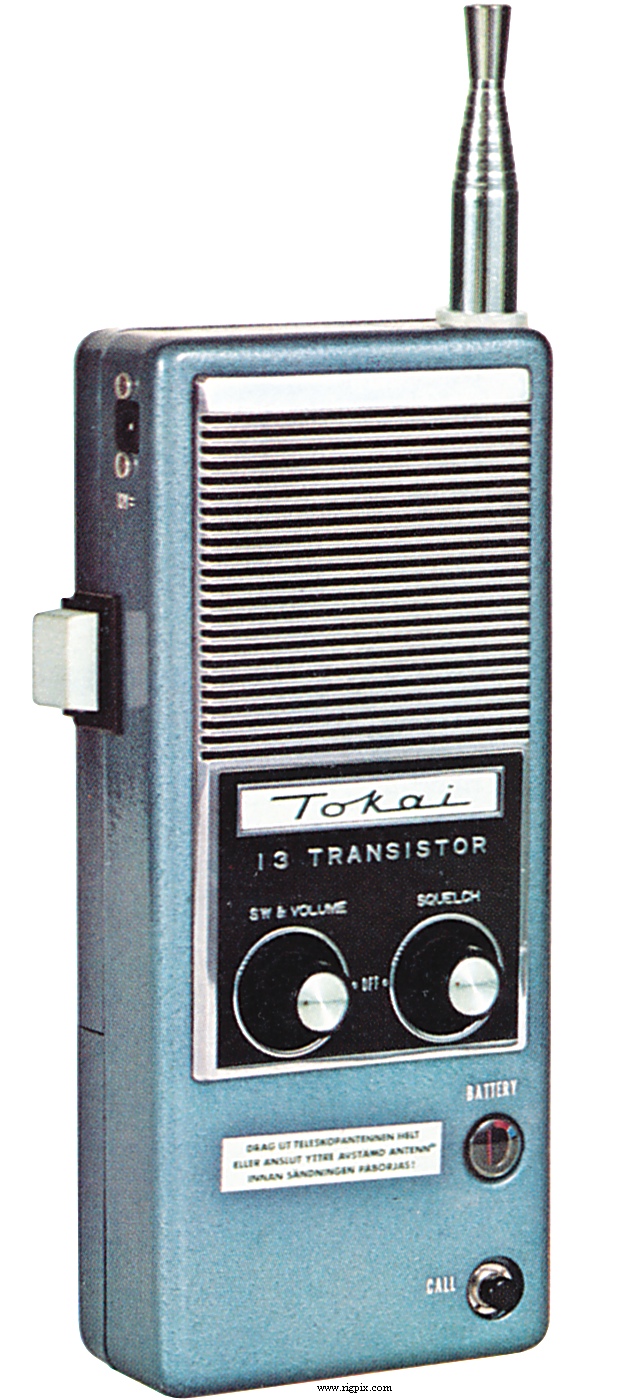

| Type: | Citizen band transceiver |
| Frequency range: | 27-29 MHz |
| Channels / tuning steps: | 3 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight LR6 / AA alkaline batteries or 2x5/500 DKz NiCd pack)
or 12 VDC external (Male barrel jack) |
| Current drain / power consumption: | RX: 15 mA (Squelched)
TX: 150 mA (No modulation) |
| Antenna impedance / connector: | Fixed telescopic whip
or 50 ohm / Phono (RCA) |
| Dimensions (W*H*D): | 90*210*40 mm (3.54*8.27*1.58") |
| Weight: | 1.1 Kg (2.42 lb), without batteries) |
| Other features: | Battery meter. Tone call. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.8 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 20 KHz (-35 dB) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~1 W (1.6 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / "Minijack" (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1975 in Sweden: SEK: 495:-
|
| Related documents: | |
| Known markets and approvals: |
Sweden
Kungliga Telestyrelsen
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
2x5/500
BA-27-14
FLC
M-131
M-184
|
NiCd battery pack
Flexible "blade" antenna
DC cable with cigarette lighter plug
Mobile gutter mount antenna
Base antenna
|
|
