President Teddy ASC

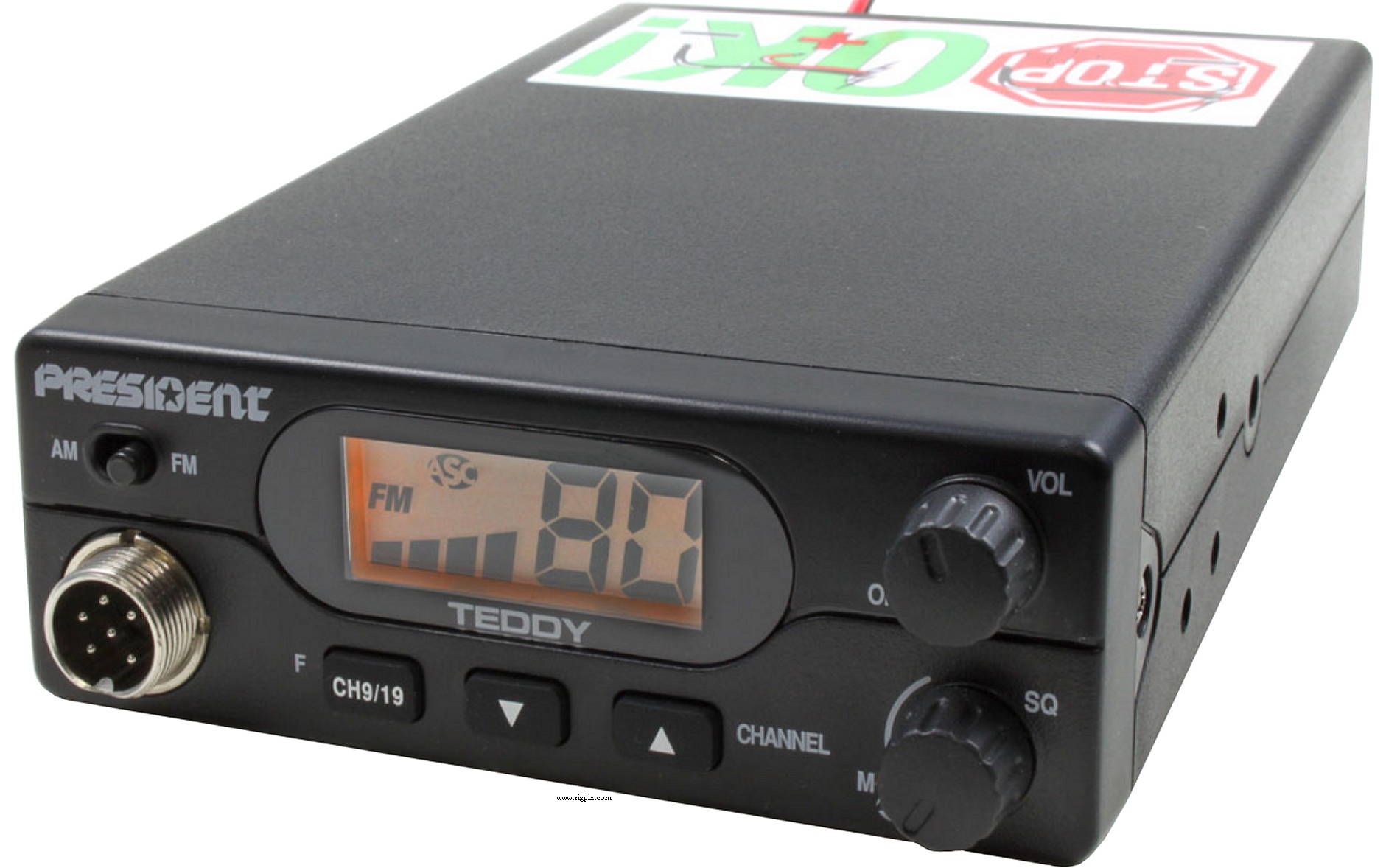

A picture of President Teddy ASC

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver, multinorm
Frequency range
depending on setting:
EC: 26.965-27.405 MHz
EU: 26.965-27.405 MHz
d: 26.565-27.405 MHz
U: 27.60125-27.99125 MHz / 26.965-27.405 MHz
PL: 26.960-27.400 MHz
RU: 26.515-27.855 MHz (Modification required)
Channels / tuning steps:40, 80 or 120 (Depending on setting)
Mode:AM / FM or FM only (Depending on setting)
Frequency control:PLL
Frequency stability:±?%
Clarifier or Delta tune:No
Power supply:10.8-15.6 VDC (Fixed power cord)
Current drain / power consumption:RX: 600 to 950 mA
TX: Max 1.8 A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):125*45*170 mm (4.92*1.77*6.69")
Weight:600 g (1.32 lb)
Other features:Instant channel 9/19 button.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:0.5 uV (20 dB SINAD)
Selectivity:60 dB (Adjacent channel)
Image rejection:60 dB
AF output power / speaker:2 W at ?% distortion / ? ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:AM: 4 W
FM: 4 W
Modulation system:
Max FM deviation (Factory set):±? KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 6-pin (Metal locking ring connector)
Microphone input level:7 mV (No reference)




MISCELLANEOUS
Manufactured:China (By Uniden), 2011-20xx (Discontinued)
Main PCB:
Sub PCBs:
Additional info:
Related documents: User manual (1.3 MB, Multi language)
Service manual (5.6 MB)
Sams Photofact #:None
Modifications and fixes:Channel expansion (497 KB)
Reviews:
Options / Accessories:
- -

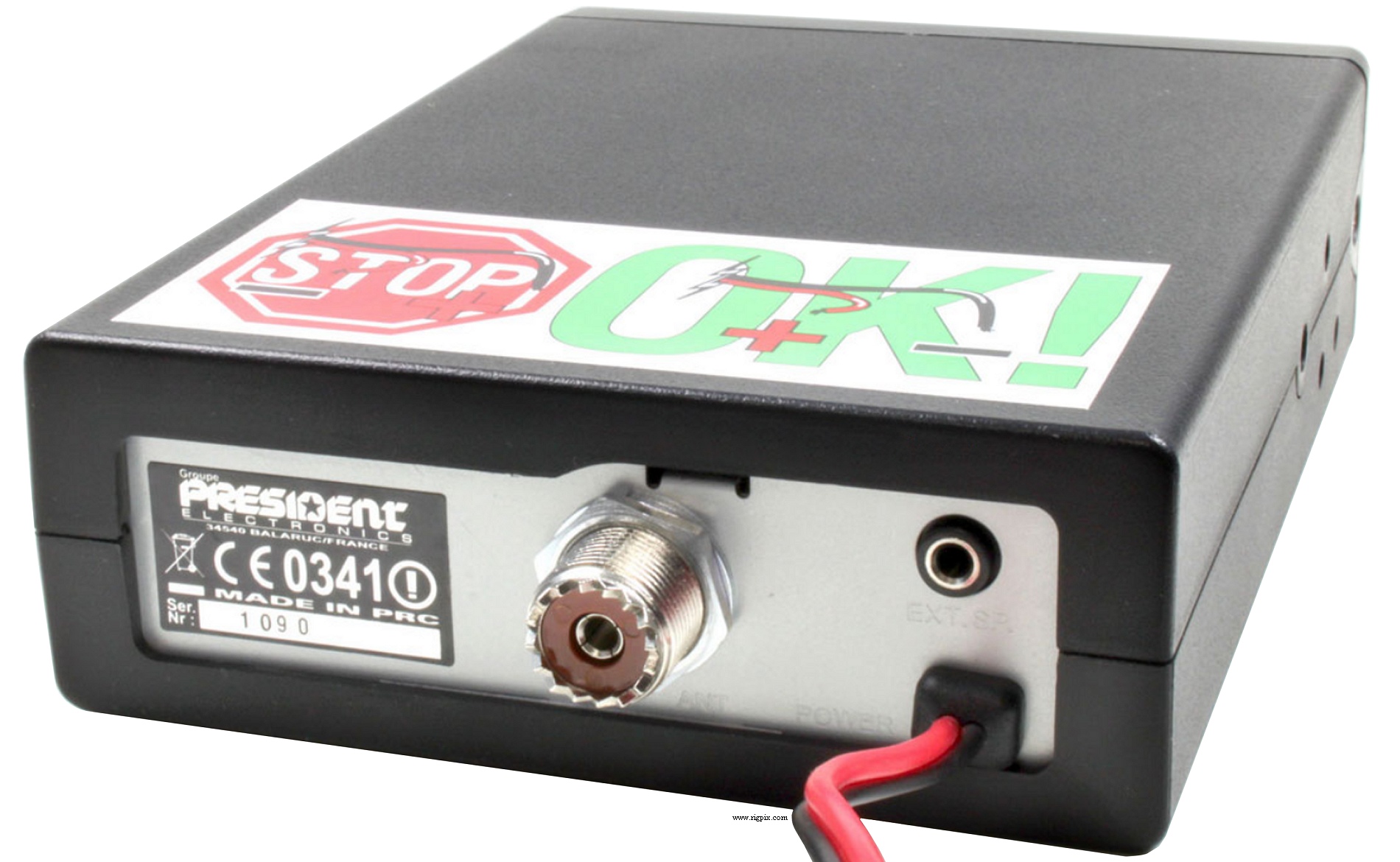

A rear picture of President Teddy ASC
