| GENERAL |

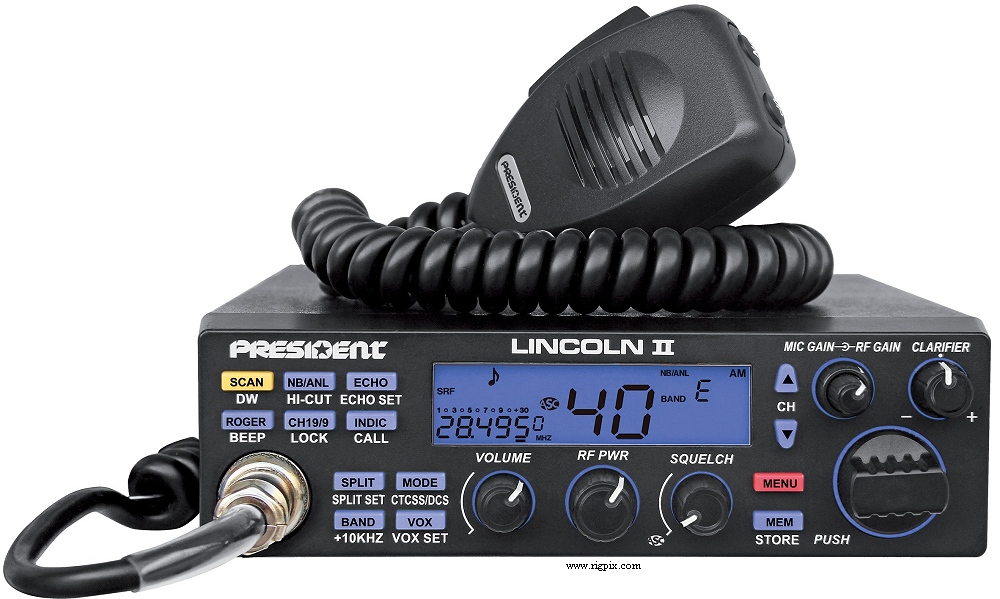

| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
25.615-30.105 MHz (Export mode)
28.000-29.700 MHz (10 m mode)
|
| Channels / tuning steps: | 400 (10*40) |
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL / CPU |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.2 VDC (3-pin connector) |
| Current drain / power consumption: | RX: 400-600 mA
TX: Max 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*52*250 mm (6.7*2*9.8") |
| Weight: | 1.4 Kg (3.1 lb) |
| Other features: |
6 memories. CTCSS & DCS. 3-color backlight. VOX. ASC. PA. ANL. NB.
Hi-cut. Dimmer. Roger beep. Dual watch. SWR-meter. Repeater split.
Echo chamber. Scanning. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
AM: 0.7 uV (20 dB SINAD)
FM: 0.35 uV (20 dB SINAD)
SSB/CW: 0.28 uV (20 dB SINAD)
|
| Squelch sensitivity: | 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / ? ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/CW: 12 W
FM: 28 W
SSB: 31 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -50 dBc |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | 3 mV (No reference) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-2016 (Discontinued) |
| Main PCB: |
Rev 1: LINCOLNIIPCB1 20131120 by ?
Rev 2: ?
Rev 3: ?
|
| Sub PCBs: | |
| Additional info: |
The Lincoln II was made in three revisions, and was eventually
superseded by the Lincoln II+
New price 2014 in Sweden: SEK 2995:- |
| Related documents: |
User manual (3.4 MB, Multi language)
Service manual (9.5 MB)
AF amplifier: TDA2003V
RF driver: FQP13N10
RF finals: Two FQP13N10
|
| Known markets and approvals: |
Europe
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | Frequency expansion (1.2 MB) |
| Reviews: | |
| Options / Accessories: |
|
