| GENERAL |
| Type: | Citizen band / "Freeband" / Export transceiver |
| Frequency range: |
24.715-30.105 MHz (Export mode)
24.890-24.990 / 28.000-29.700 MHz (10/12 m mode)
|
| Channels / tuning steps: |
100 Hz, 1 / 10 / 100 KHz, 1 MHz
480 channels (Export mode)
400 channels (10/12 m mode)
|
| Mode: | AM / FM / SSB / CW |
| Frequency control: | PLL / CPU |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 13.2 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 400-600 mA
TX: Max 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 170*52*250 mm (6.7*2*9.8") |
| Weight: | 1.4 Kg (3.1 lb) |
| Other features: |
6 memories. CTCSS/PL & DCS. 3-color backlight. VOX. ASC. PA. ANL. NB.
Hi-cut. Dimmer. Roger beep. Dual watch. SWR-meter. Repeater split.
Echo chamber. Scanning. PC-programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz - Ceramic filter: LT455HT
|
| Sensitivity: |
AM: 0.7 uV (20 dB SINAD)
FM: 0.35 uV (20 dB SINAD)
SSB/CW: 0.28 uV (20 dB SINAD)
|
| Squelch sensitivity: | 0.2 uV (Threshold)
1 mV (Tight) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | 60 dB |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM/CW: 12 W
FM: 35 W
SSB: 35 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±2 KHz |
| Spurious emissions: | Better than -50 dBc |
| Microphone impedance / connector: | ? ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | 3 mV (No reference) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2016-202x |
| Main PCB: |

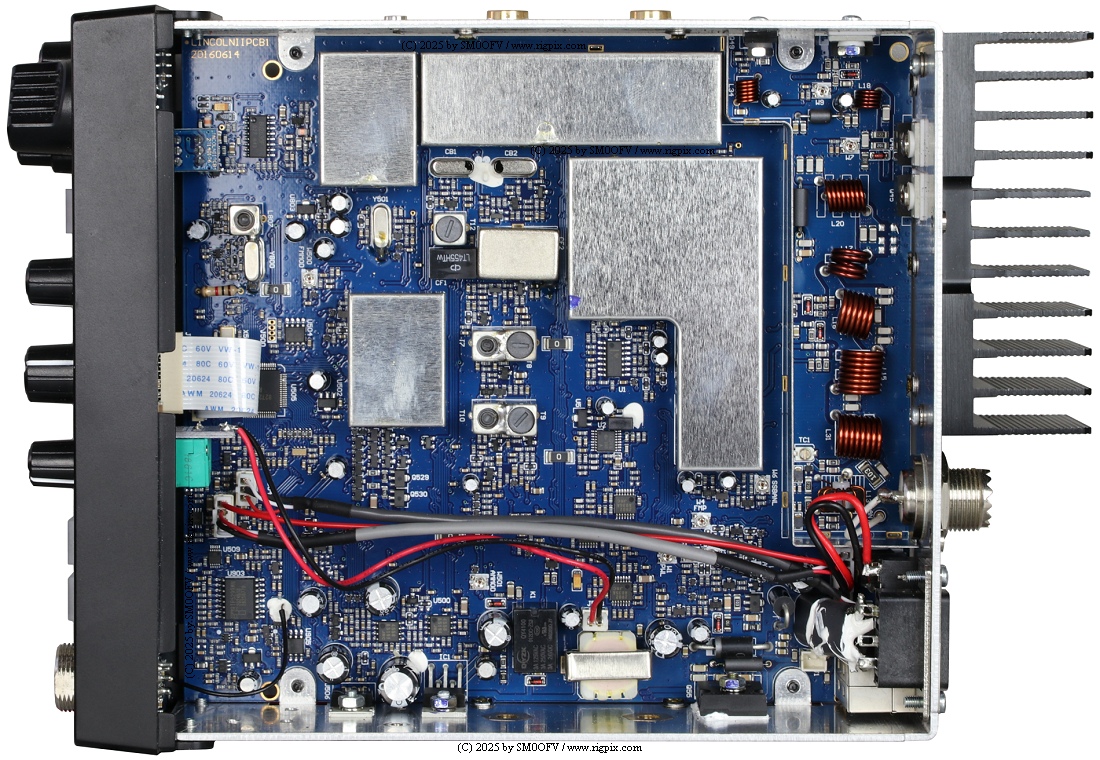

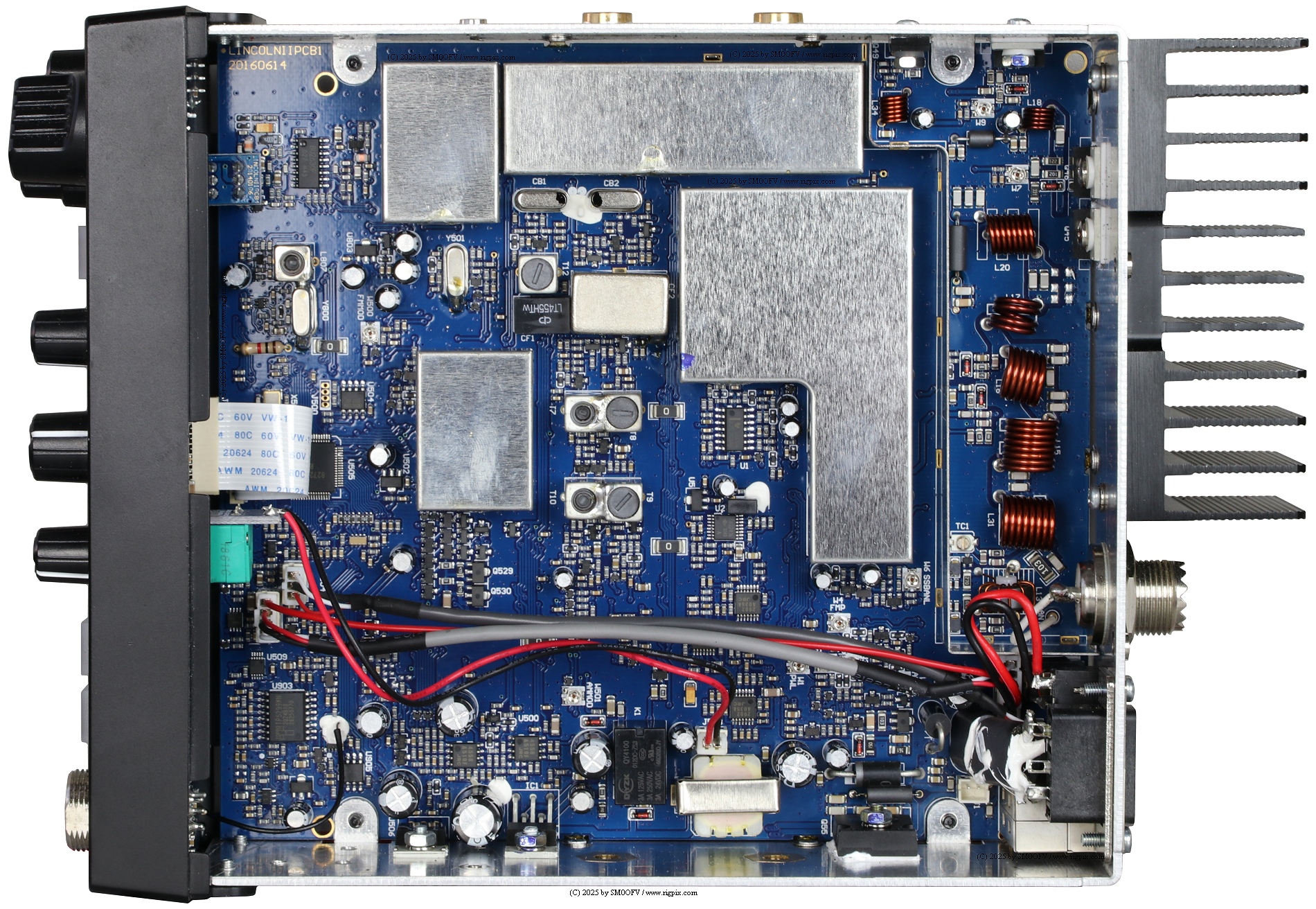

LINCOLNIIPCB1 20160614 by ?
Double sided with mainly SMD components
|
| Sub PCBs: |

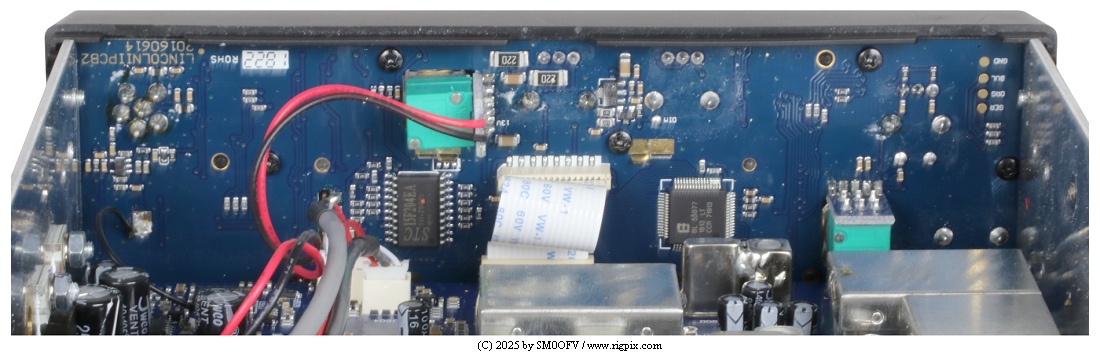

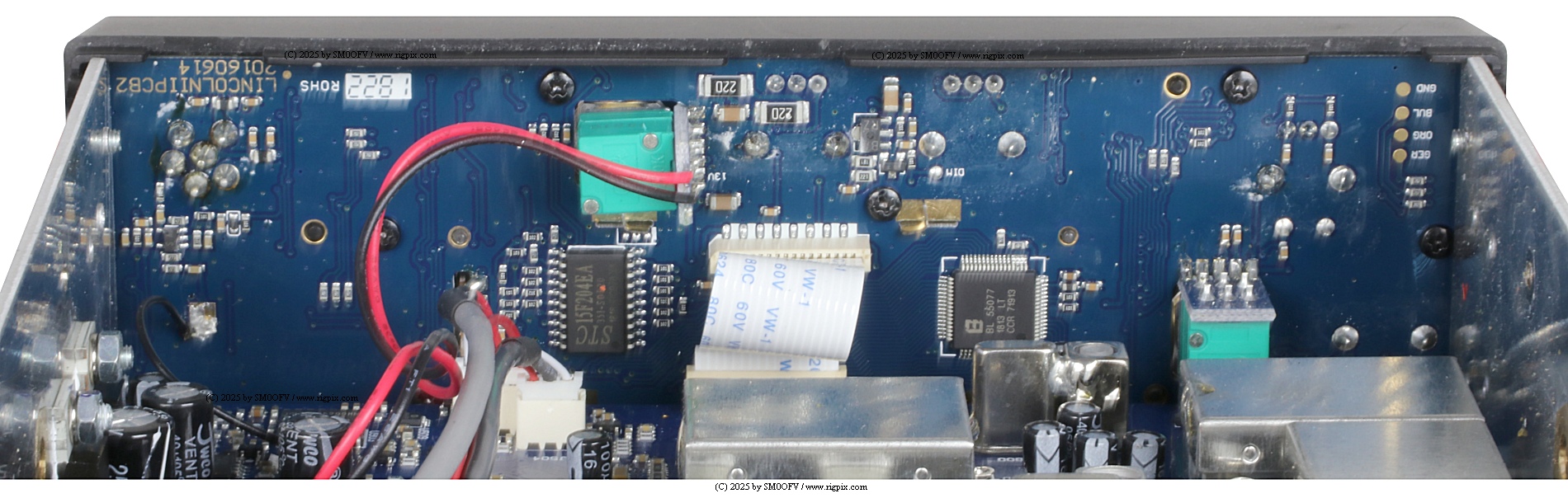

LINCOLNIIPCB2 20160614 - LCD/front panel board
|
| Additional info: |
Notable changes over its predecessor is expanded frequency range down
to the 12 m band and slightly increased output power.
New price 2021 in Sweden: SEK 2995:-
|
| Related documents: |
User manual (2.3 MB, Multi language)

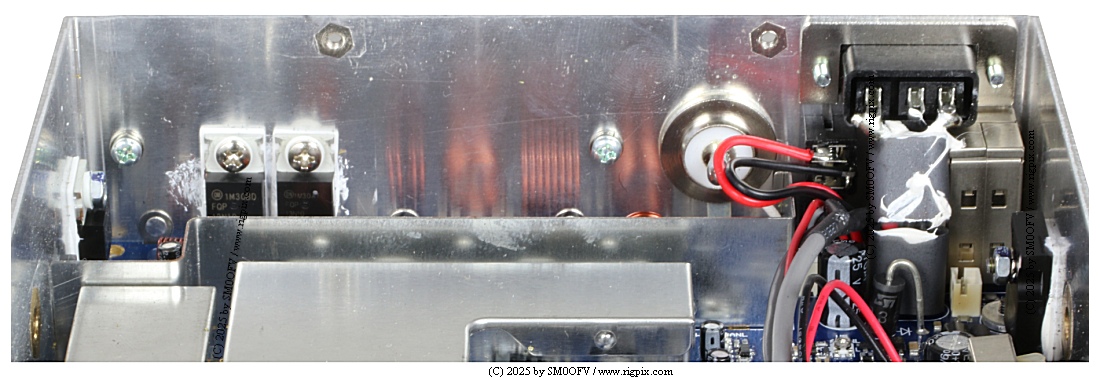

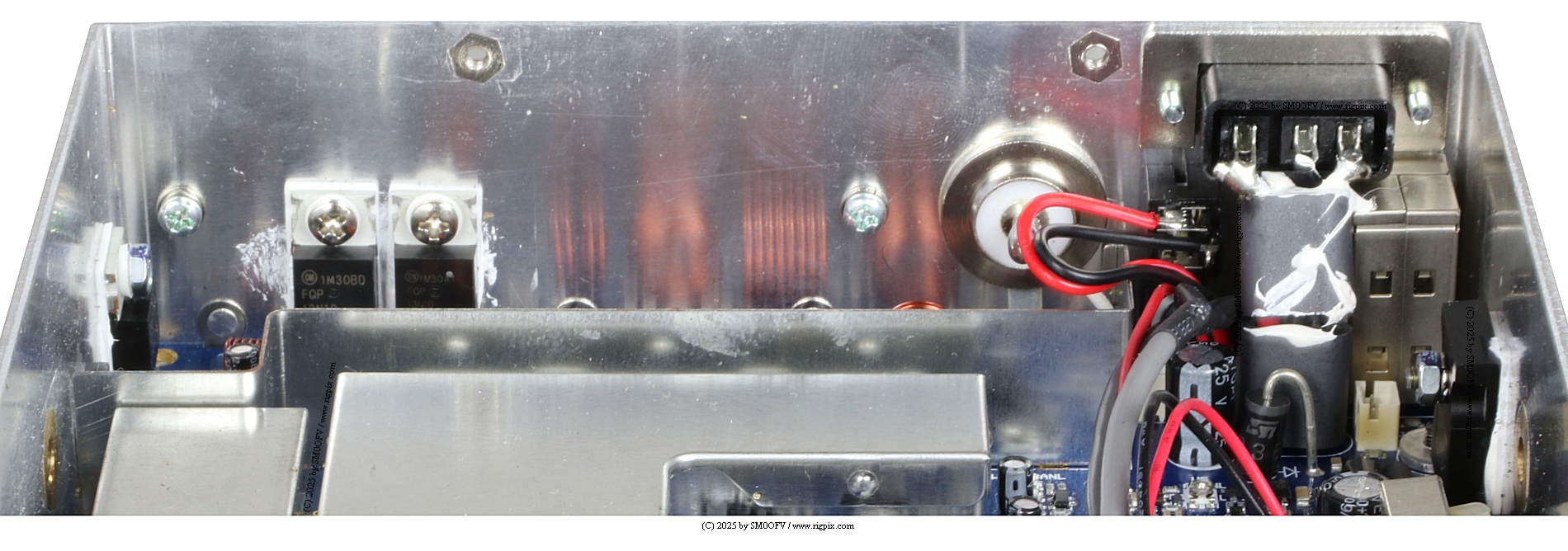

AF amplifier: TDA2003L
RF driver: FQP13N10
RF finals: Two FQP13N10
|
| Known markets and approvals: |
Europe
No known approvals for CB use
|
| Sams Photofact #: | None |
| Modifications and fixes: | Frequency expansion (2.3 MB) |
| Reviews: | |
| Options / Accessories: |
|
