Pearce-Simpson Super Cheetah Mk2 / MkII (By Hatadi Electronics)

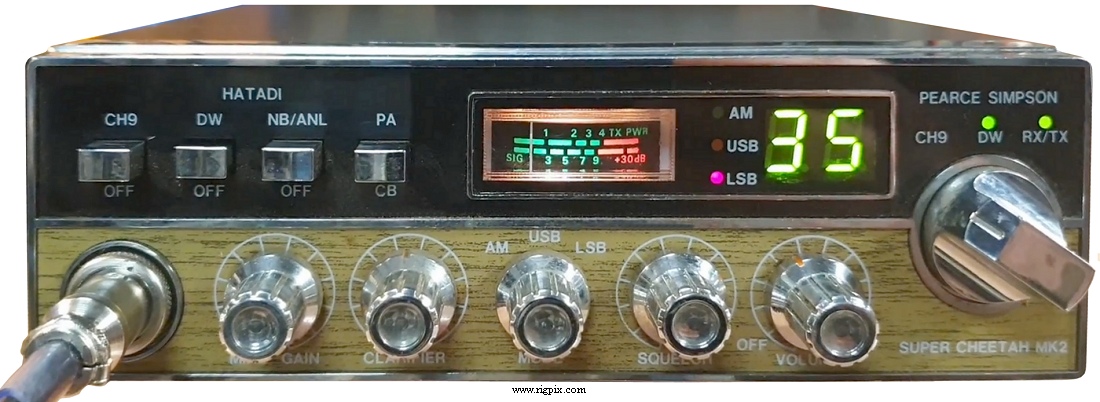

A picture of Pearce-Simpson Super Cheetah  Mk2 / MkII (By Hatadi Electronics)

SPECIFICATIONS

GENERAL
Type:Citizen band Export transceiver
Frequency range:26.965-27.405 MHz
Channels/tuning steps:40
Mode:AM / SSB
Frequency control:PLL (TC9109BP)
Frequency stability:0.001%
Power supply:11.7-15.9 VDC (3-pin connector)
Current drain/power consumption:RX: ? mA
TX: Max 2.2 A
Antenna impedance/connector:50 ohm / SO-239
Dimensions (W*H*D):? mm (7.28*2.28*9.08")
Weight:? Kg (4.5 lb)
Other features:PA. ANL/NB. Channel 19 button. Dual watch.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne
IF: 10.695 MHz
Sensitivity: AM: 0.5 uV (10 dB S+N/N)
SSB: 0.25 uV (10 dB S+N/N)
Selectivity: AM & SSB: 4.2 KHz (-6 dB), 7 KHz (-60 dB)
Image rejection:75 dB
AF output power/speaker:3 W at 10% distortion / 6 ohm
External speaker connector:3.5 mm, 8 ohm




TRANSMITTER SECTION
RF output power: AM: 4 W
SSB: 12 W (PEP)
Modulation system: AM: High and low level class B
Balanced
Max FM deviation (Factory set):No FM
Spurious emissions:Less than -? dB
Microphone impedance/connector:? ohm / 4-pin (Metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:198x-198x (Discontinued)
Main PCB:EPT274011S by Ranger
Sub PCBs:
Additional info:
Related documents: User manual (2.3 MB)
PLL: TC9109BP
Sams Photofact #:
Modifications and fixes:
Reviews:
Options/Accessories:
- -
