| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: |

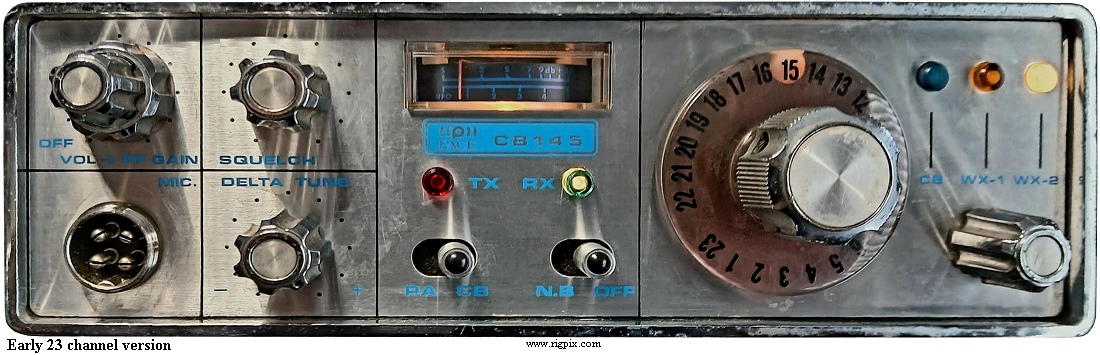

Early:
CB: 26.965-27.255 MHz
WX: 162 MHz (RX only)

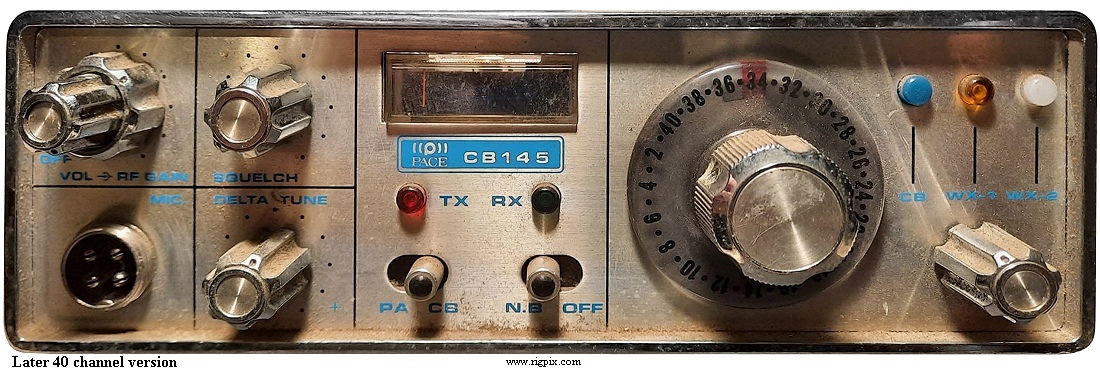

Later:
CB: 26.965-27.405 MHz
WX: 162 MHz (RX only)
|
| Channels / tuning steps: |
CB: 23 (Early)
CB: 40 (Later)
WX: 2 (162.400 and 162.550 MHz)
|
| Mode: | CB: AM
WX: FM |
| Frequency control: | XTAL matrix, 14 XTALs (Early)
PLL (Later) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | 12 VDC (Fixed power cord) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 190*57*254 mm (7.5*2.25*10") |
| Weight: | 4.54 Kg (10 lb), with mobile bracket |
| Other features: | PA. NB. RF gain. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (CB)
1st IF: ? MHz
2nd IF: 455 KHz
Double conversion superheterodyne (WX)
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
CB: 0.5 uV (10 dB S+N/N)
WX: 2 uV (20 dB S+N/N)
|
| Squelch sensitivity: | 500 uV (Tight) |
| Selectivity: | 20 KHz (-60 dB) |
| Image rejection: | 50 dB |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max AM modulation (Factory set): | Typically 95% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Early: Japan, 1975-1976 (Discontinued)
Later: 1977-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1975 in the US: $209.95
|
| Related documents: |
Service manual, early version (5.1 MB)
|
| Known markets and approvals: |
USA
FCC Data: CB 145 type no 42218 (Early)
|
| Sams Photofact #: | CB-96 (September 1976) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
