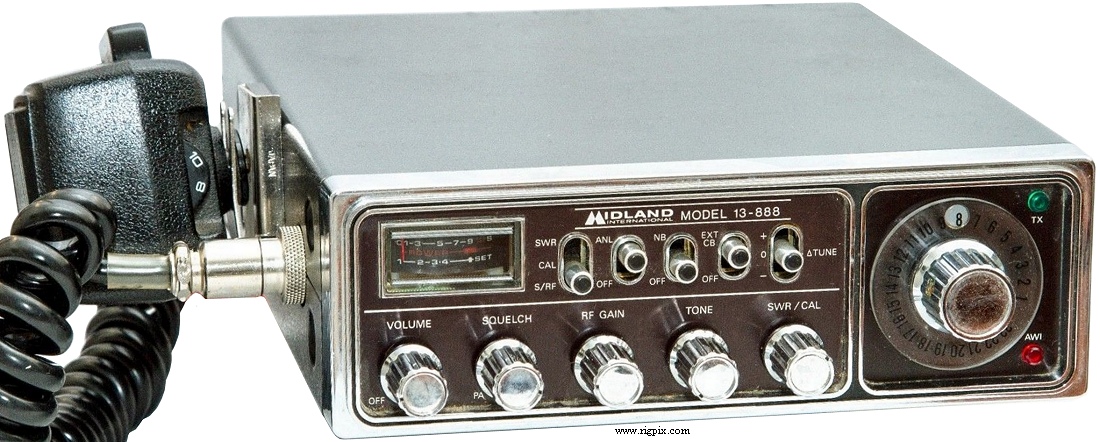

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM |
| Frequency control: | PLL (PLL01A) |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | ±1 KHz |
| Power supply: | 13.8 VDC, Fixed power cord (Early) - Male 3-pin jack (Later) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 178*59*210 mm (7*2.31*8.25") |
| Weight: | 1.5 Kg (3.3 lb) |
| Other features: | PA. NB/ANL. SWR-meter. AWI (SWR warning). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 5.945 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Squelch sensitivity: | 0.5 uV (Threshold)
500 uV (Tight) |
| Selectivity: | 20 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 600 ohm / 6-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1975-1976 (Discontinued) |
| Main PCB: | PTBM027AOX by Cybernet Electronics Corporation |
| Sub PCBs: | PTSR002BOX - SWR board |
| Additional info: | |
| Related documents: |
Service manual (2.1 MB)
|
| Known markets and approvals: |
USA
FCC Data: 13-888
|
| Sams Photofact #: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
