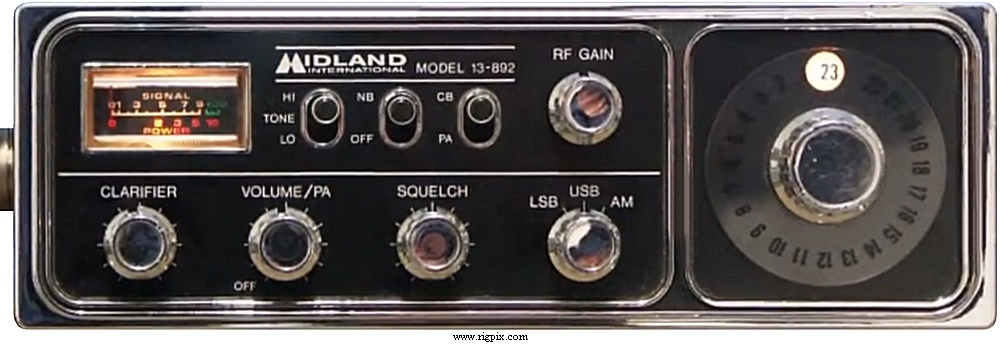

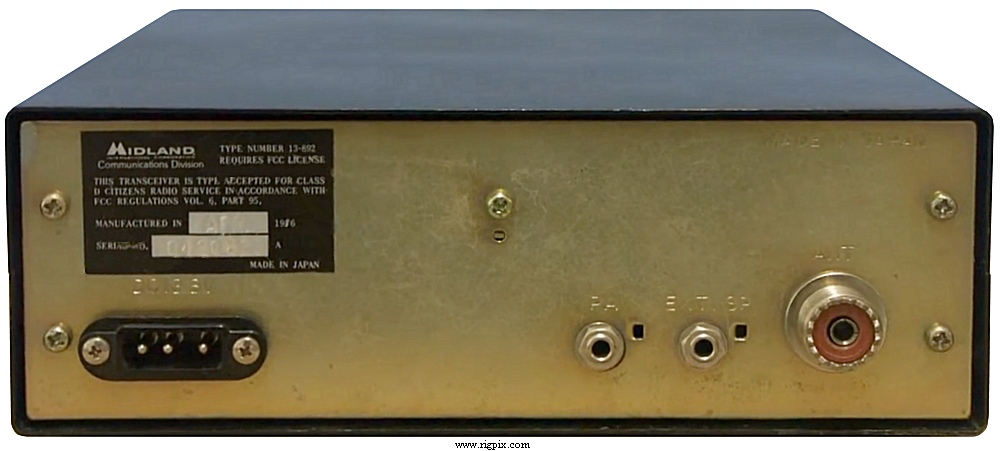

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 23 |
| Mode: | AM / SSB |
| Frequency control: | XTAL matrix (10 XTALs) |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | ±600 Hz |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 197*64*241 mm (7.75*2.5*9.5") |
| Weight: | 2 Kg (4.4 lb) |
| Other features: | PA. NB. Tone hi-cut. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 11.275 MHz
|
| Sensitivity: |
AM: 1 uV (10 dB S/N)
SSB: ? uV
|
| Squelch sensitivity: | 1 uV (Threshold
500 uV (Tight) |
| Selectivity: | 50 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
AM: 4 W
SSB: 12 W (PEP)
|
| Modulation system: |
AM: High level
SSB: Balanced
|
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -50 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1975-1976 (Discontinued) |
| Main PCB: |
EPO-0645-01 by Cybernet Electronics Corporation
|
| Sub PCBs: |
EPO-0658 - Channel selector and XTALs board
|
| Additional info: | |
| Related documents: |
User manual (3.4 MB)
AF amplifier: Two 2SD325E
RF driver: 2SC1306
RF final: 2SC1307
|
| Known markets and approvals: |
USA
FCC: Type accepted Class D, part 95
|
| Sams Photofact #: | CB-158 (December 1977) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
