| GENERAL |

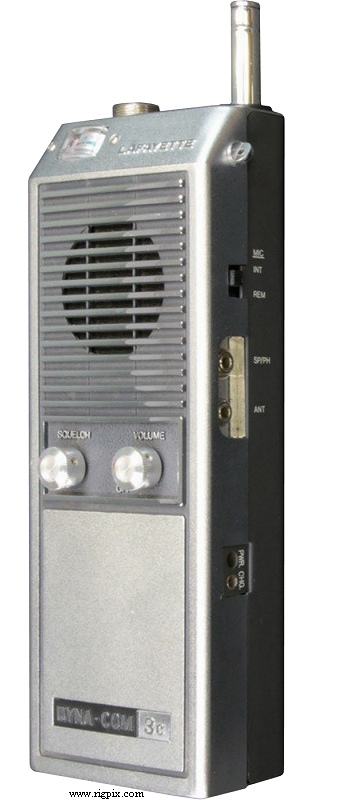

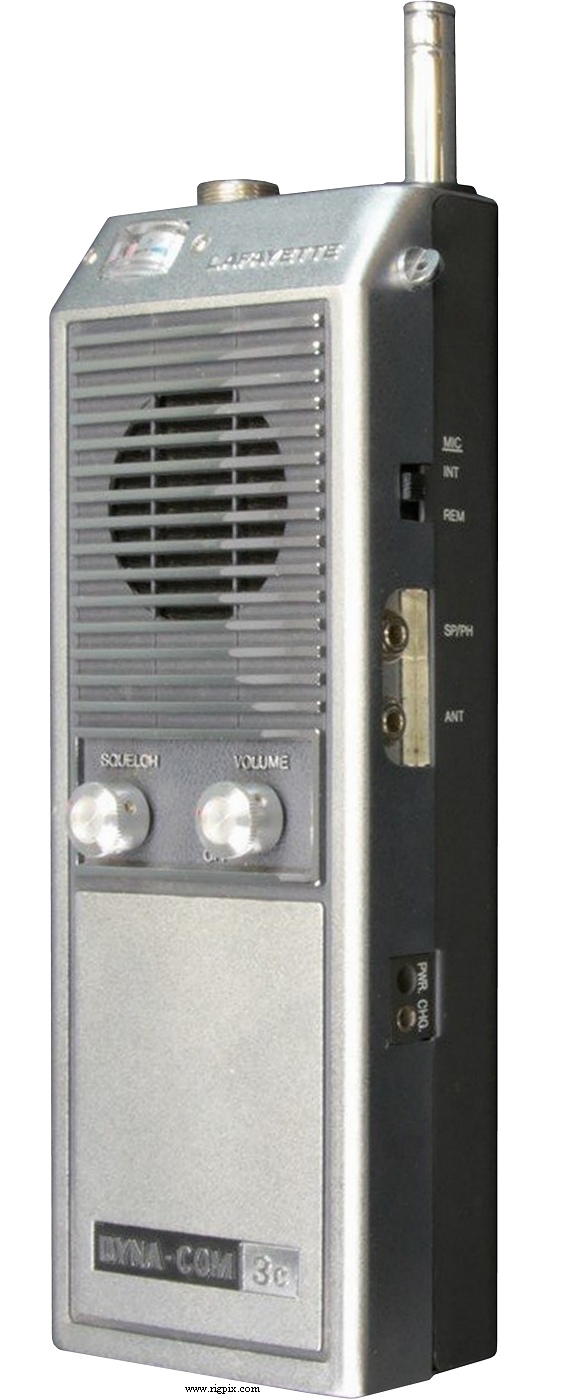

| Type: | Citizen band transceiver |
| Frequency range: | 26-28 MHz |
| Channels / tuning steps: | 3 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | ? VDC (Batteries)
or ? VDC external (Barrel jack) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | Fixed telescopic whip
50 ohm / TS "Minijack" (3.5 mm) |
| Dimensions (W*H*D): | 85*225*50 mm (3.35*8.86*1.97") |
| Weight: | 1.3 Kg (2.87 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / 100 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~2 W (3 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-1979 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1979 in the US: $79.99
New price 1980 in Sweden: SEK 765:-
|
| Related documents: | |
| Market(s) / Approval(s): |
Sweden
Televerket
USA
FCC Data: Dyna-Com 3C
|
| Sams Photofact #: | CB-264 (June 1979) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
