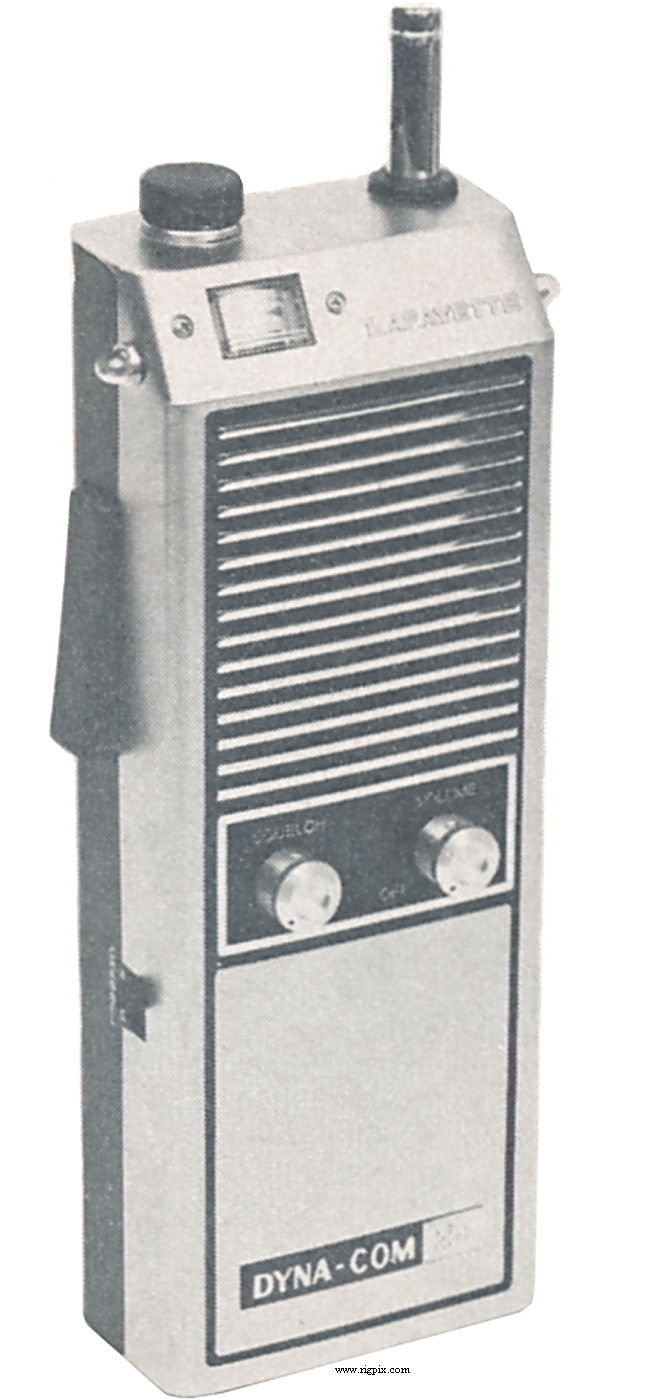

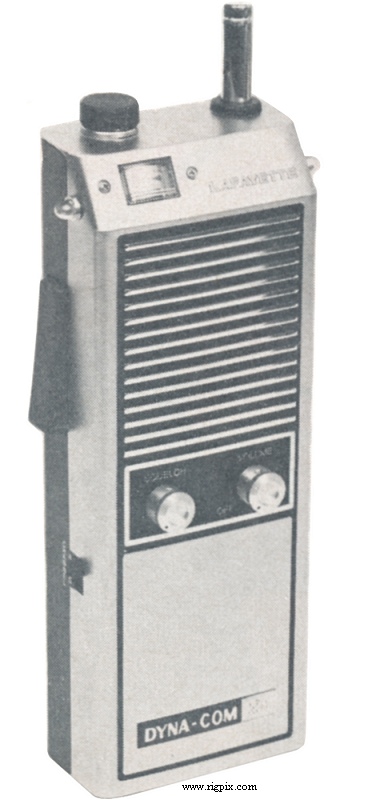

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26-31 MHz (Any 500 KHz segment according to alignment) |
| Channels / tuning steps: | 3 |
| Mode: | AM |
| Frequency control: | Two XTALs per channel |
| Frequency stability: | ?% |
| Clarifier or Delta tune: | No |
| Power supply: | 12-15 VDC (Ten R6 / AA alkaline or NiCd batteries)
or 12 VDC external (Male barrel jack, center negative) |
| Current drain / power consumption: | RX: 40-450 mA
TX: 500 mA @ 100% modulation |
| Antenna impedance / connector: | Fixed telescopic whip
50 ohm / TS "Minijack" (3.5 mm) |
| Dimensions (W*H*D): | 89*260*54 mm (3.5*10.24*2.13") |
| Weight: | 1.1 Kg (2.43 lb), without batteries
1.34 Kg (2.95 lb), with alkaline batteries |
| Other features: | Battery/S/RF meter. Range boost. Charging jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz - Ceramic filter: Murata CFW455HT
|
| Sensitivity: | 0.5 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 6 KHz (-6 dB)
18 KHz (-50 dB) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at ?% distortion / 100 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~2 W (3 W input) |
| Modulation system: | |
| Max AM modulation (Factory set): | 100% |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 100 ohm / 4-pin (Male GX16 locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1981-198x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
New price 1982 in Sweden: SEK 1165:-
New price 1983 in Sweden: SEK 1165:-
|
| Related documents: |
RF driver: 2SC815
RF final: 2SC1306
|
| Known markets and approvals: |
Sweden
Televerket: RL 3006/81
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
