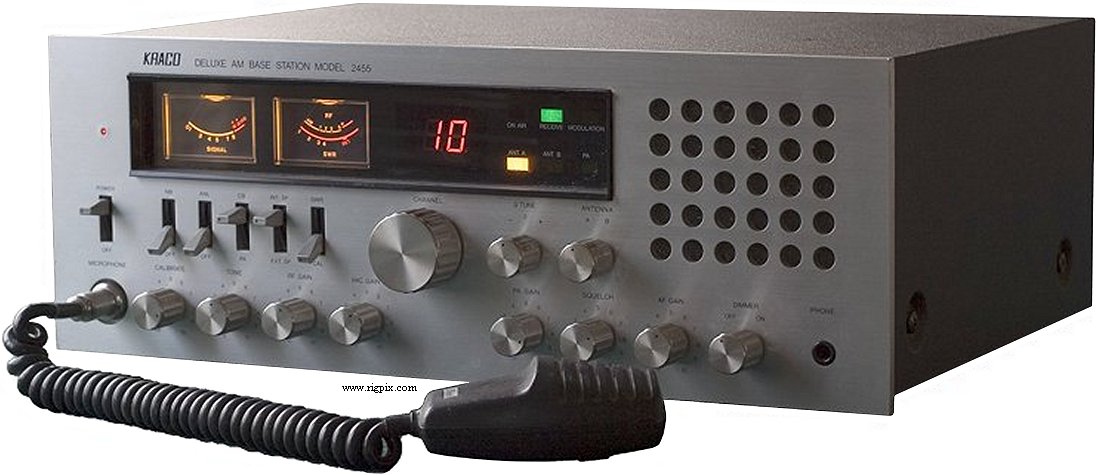

| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 24 (1-23 + 11A) |
| Mode: | AM |
| Frequency control: | PLL (PLL03A) |
| Frequency stability: | ±0.003% |
| Clarifier or Delta tune: | ±? KHz |
| Power supply: | Mains: 220 VAC (Fixed power cord) |
| Current drain / power consumption: | RX: ? W
TX: Less than 75 W |
| Antenna impedance / connector: | 50 ohm / Two SO-239 (Switchable) |
| Dimensions (W*H*D): | 405*150*300 mm (15.95*5.9*11.81"), without rack mounting handles |
| Weight: | 8.5 Kg (18.74 lb) |
| Other features: | ANL/NB. PA. SWR meter. Delta tune. Dimmer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 1 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 4 KHz (-5 dB)
10 KHz (-50 dB) |
| Image rejection: | >50 dB |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | High and low level class B amplitude modulation |
| FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1980-1981 (Discontinued) |
| Main PCB: | PTBM070COX by Cybernet Electronics Corporation |
| Sub PCBs: |
PTLD054COX - LED display and indicator board
PTPW007COX - AVR/PSU board
PTSR017COX - SWR and antenna A/B relay board
PTSW020COX - Channel selector board
PTZZ024AOX - Selcall relay board
|
| Additional info: | |
| Related documents: | Schematic diagram (1.7 MB), Kraco 2455 specific |
| Market(s) / Approval(s): |
Sweden
Televerket
|
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
