| GENERAL |

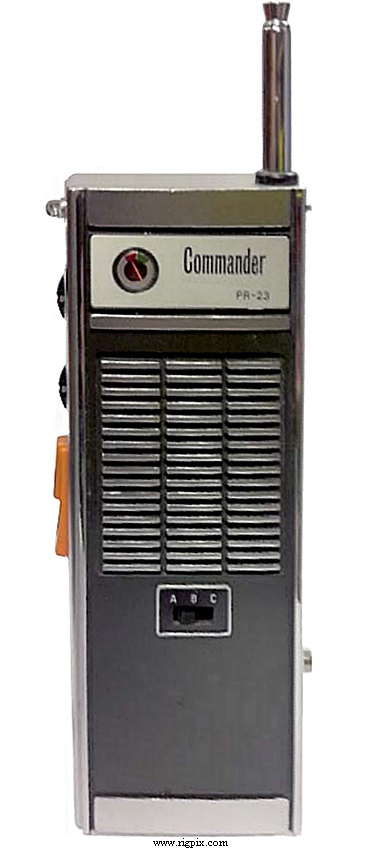

| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 3 |
| Mode: | AM |
| Frequency control: | Two XTAL's per channel |
| Frequency stability: | ±0.005% (No temperature reference) |
| Clarifier or Delta tune: | No |
| Power supply: | 12 VDC (Eight LR6 / AA batteries or NiCd pack)
or 12 VDC external |
| Current drain / power consumption: | RX: 25-180 mA (No signal)
TX: 220-380 mA |
| Antenna impedance / connector: | 50-75 ohm / RCA (Phono)
Fixed telescopic whip |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? g (? lb) |
| Other features: | Battery meter. Charging jack. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
IF: 455 KHz
|
| Sensitivity: | 0.7 uV (10 dB S/N) |
| Squelch sensitivity: | |
| Selectivity: | 20 KHz (-45 dB) |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~1 W (2 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | 8 ohm / Internal only |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1974-197x (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: | |
| Related documents: |
User manual (6.2 MB)
|
| Market(s) / Approval(s): | |
| Sams Photofact #: | None |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
