| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (uPD2816) |
| Frequency stability: | 0.005% @ -30 to +50°C (-22 to +122°F) |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.5-1.5 A
TX: Max 1.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | ? mm (5.5*1.62*7.81") |
| Weight: | ? Kg (3.5 lb) |
| Other features: | PA. ANL. Remote control speaker-microphone. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.5 uV (10 dB S+N/N) |
| Squelch sensitivity: | Less than 1 uV (Threshold) |
| Selectivity: | 7 KHz (-6 dB)
10 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | High- and low-level Class B |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 20-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 197x-197x (Discontinued) |
| Main PCB: | PC-422 by Uniden |
| Sub PCBs: |
PC-322 - Speaker-microphone board
|
| Additional info: | |
| Related documents: |
User manual (4.9 MB)
PLL: uPD2816
AF amplifier: TA7222P
RF driver: 2SC2091
RF final: 2SC2092
|
| Market / Approval: |
USA
FCC Data: ?
|

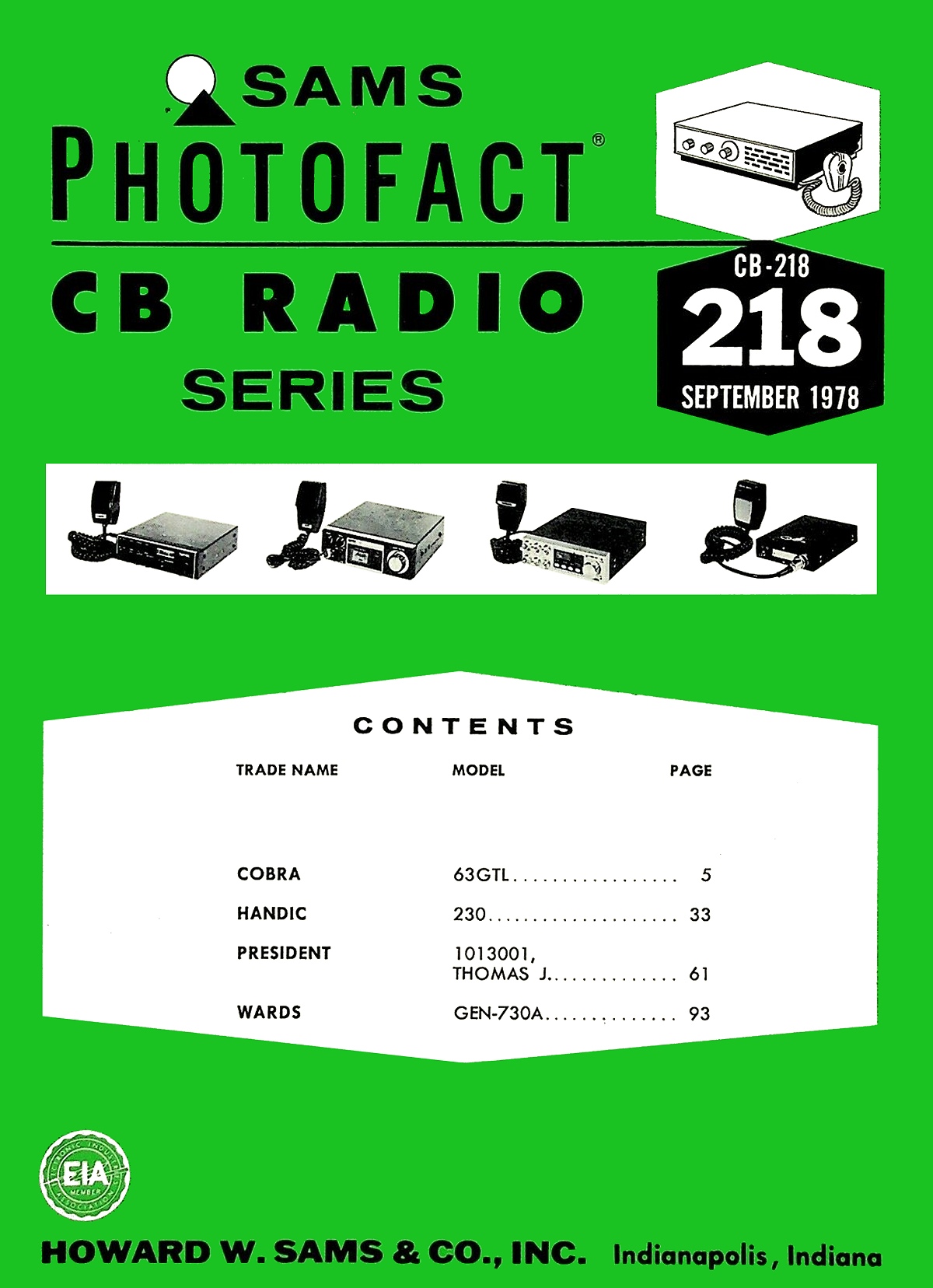

| Sams Photofact #: | CB-218 (September 1978) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CA-20
CA-63
CK-6306
|
AC power supply. 120 VAC
Speaker switching unit
Microphone extension cable, 1.83 m (6 ft)
|
|
