| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.255 MHz |
| Channels / tuning steps: | 1-22 + 11A (Sweden)
1-23 (USA) |
| Mode: | AM |
| Frequency control: | PLL (uPD861) |
| Frequency stability: | ±?% |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): |
Transceiver unit: 175*45*170 mm (6.89*1.77*6.69")
RCJ-001 control unit: 120*43*102 mm (4.72*1.69*4.02")
|
| Weight: |
Transceiver unit: ? Kg (? lb)
RCJ-001 control unit: ? g (? oz)
|
| Other features: |

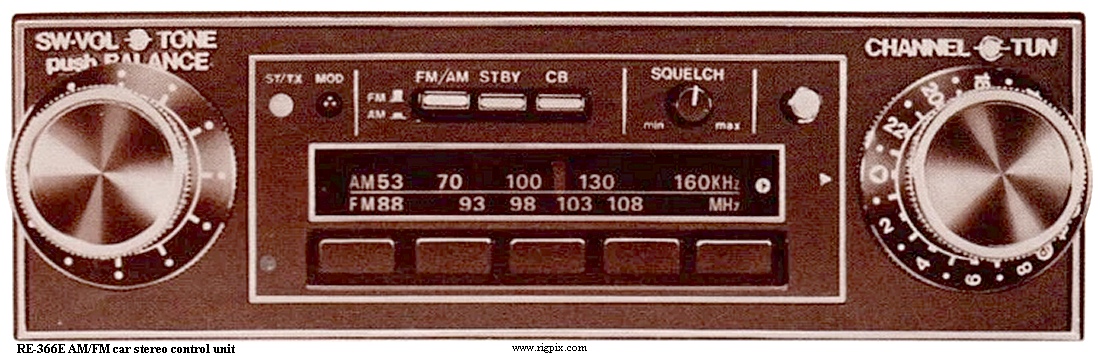

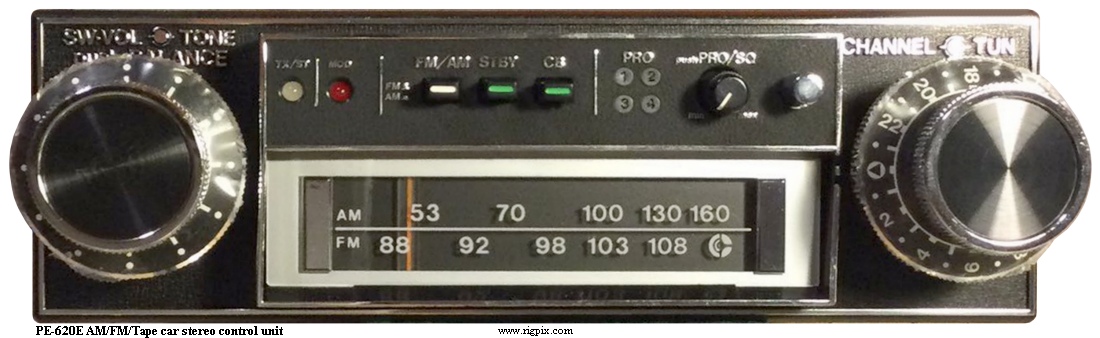

Could also be used with RE-366E AM/FM or PE-620E AM/FM/Tape car
stereo control units.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | ~3.5 W (5 W input) |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1976-1977 (Discontinued) |
| Main PCB: |
099-4676-01 by ?
Single sided with through-hole components
|
| Sub PCBs: | |
| Additional info: | |
| Related documents: | |
| Known markets and approvals: |
Sweden
Televerket
USA
FCC Data: ?
|
| Sams Photofact #: |
CB-117 (April 1977),
CB-118 (April 1977)
CB-172 (February 1978)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
?
|
Controller extension cable
|
|
