| GENERAL |
| Type: | Citizen band transceiver |
| Frequency range: | 26.965-27.405 MHz |
| Channels / tuning steps: | 40 |
| Mode: | AM |
| Frequency control: | PLL (TC9100) |
| Frequency stability: | ? ppm |
| Clarifier or Delta tune: | No |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): |

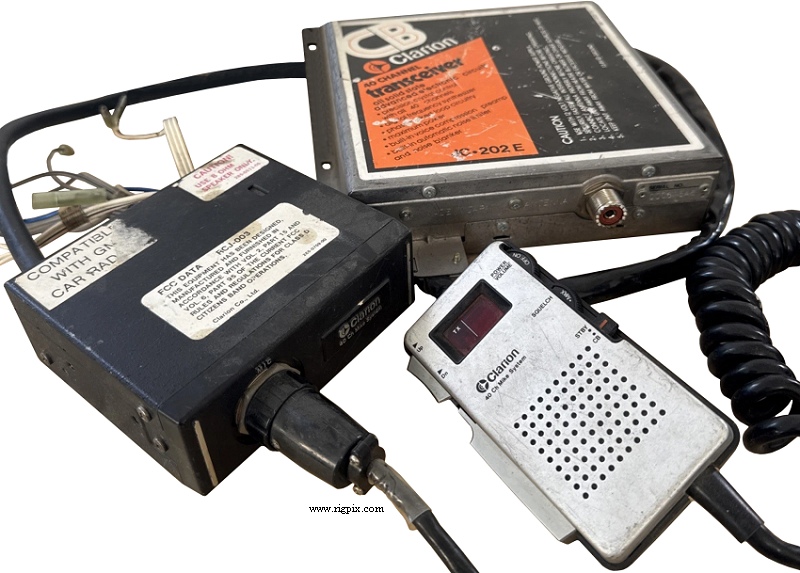

Transceiver unit: 172*48*170 mm (6.77*1.89*6.69")
RCJ-003 connection box: 120*43*105 mm (4.72*1.69*4.13")
DMA-066 control microphone: ? mm (?")
|
| Weight: |
Transceiver unit: 1.3 Kg (2.87 lb)
RCJ-003 connection box: 510 g (1.12 lb)
DMA-066 control microphone: ? g (? oz)
|
| Other features: |
Could also be used with PE-621E, PE-672E or RE-367E AM/FM/Tape
car stereo control units.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: 455 KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / No internal speaker |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: | 4 W |
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 18-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1977-1978 (Discontinued) |
| Main PCB: | |
| Sub PCBs: | |
| Additional info: |
Was available with a silver or black control microphone.
|
| Related documents: | |
| Known markets and approvals: |
USA
FCC Data: JC-202E (Transceiver unit)
FCC Data: RCJ-003 (Connection box)
|
| Sams Photofact #: |
CB-140 (September 1977)
CB-150 (November 1977)
CB-167 (February 1978)
CB-173 (March 1978)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
CBC-001
|
Transceiver extension cable
|
|
