Uniden Bearcat BC-245XLT (Trunktracker II)

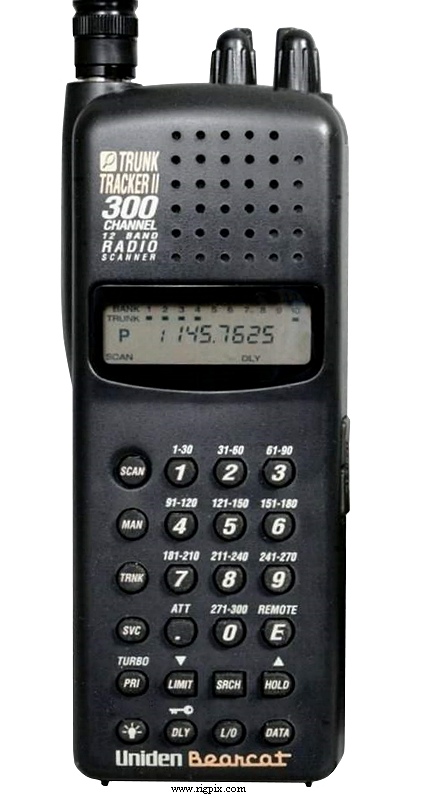

A picture of Uniden Bearcat BC-245XLT (Trunktracker II)

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range:29-54 / 108-174 / 406-512 / 806-956 MHz (Cellular blocked in the US)
Tuning steps:5 / 12.5 KHz
Frequency stability:? ppm
Mode:AM/FM
Channels/memory management: 300 regular in 10 banks @ 100 ch/second (conventional mode)
10 priority
EEPROM non-volatile storage
Power supply:4.8 VDC (NiCd battery pack) or 12 VDC external
Current drain/power consumption:? mA
Antenna impedance/connector:50 ohm / BNC
Dimensions (W*H*D):64*152*44 mm (2.52*5.98*1.73")
Weight:312 g (11.01 oz)
Other features: Trunktracker II with Multi-track: Tracks Motorola I, II, Hybrid, Smartnet,
Privacy Plus and EDACS
Data skip. Backlit display. 15 dB attenuator. RS232C-programmable




RECEIVER SECTION
Receiver system:? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power/speaker:210 mW at ?% distortion / 8 ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Philippines, 1999-200x (Discontinued)
Additional info:
Related documents:User manual (3.7 MB)
Modifications:
Reviews:
Options/Accessories:
AD-70U
BP-180
WZ-1015
WZ-1017
AC adapter
NiCd battery pack. 4.8 V, 800 mAh
Power cord
Power cord
