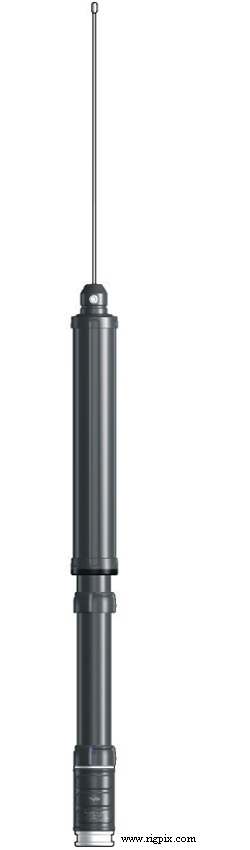

| Type: | Amateur HF/VHF/UHF mobile active tuning antenna |
| Frequency range / band(s): | 10 / 15 / 20 / 40 m + 6 / 2 m and 70 cm |
| Bandwidth @ SWR: | Full ham bands @ SWR <2.0:1 (With adequate counterpoise) |
| Gain: | |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 120 W (SSB) |
| Impedance / connector: | 50 ohm / PL-259 |
| Wind area: | - |
| Max wind resistance: | |
| Turning radius: | - |
| Dimensions: | Length: 1.4-1.6 m (4.59-5.24 ft), depending on tuning |
| Weight: | 900 g (1.98 lb) |
| Mast mount diameter: | - |
| Manufactured: | Japan, 2002-2005 (Discontinued) |
| Additional info: |
New price 2003 in the UK: £259.95
New price 2005 in the UK: £259.95
|
| Related documents: |
User manual (106 KB)
Service manual/Technical supplement (429 KB)
|
| Reviews: | |
| Options / Accessories: |
|
ATBK-100
|
Antenna base kit
|
|
