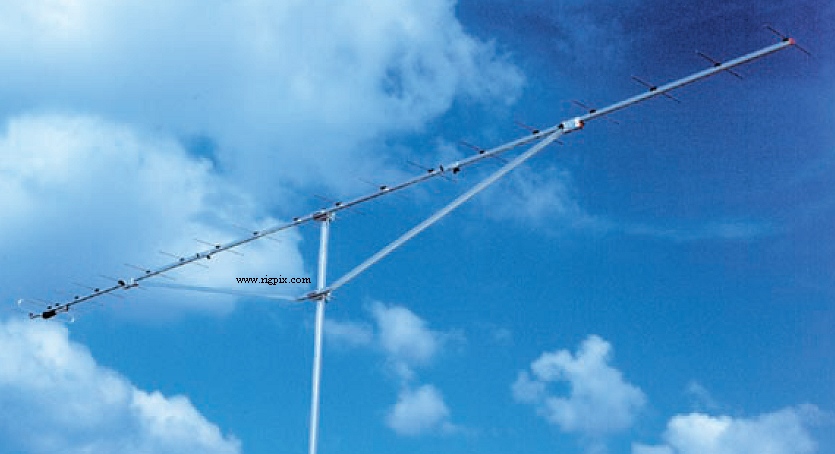

| Type: | Amateur UHF Yagi, 21 elements |
| Frequency range / band(s): | 434-440 MHz (70 cm) |
| Bandwidth @ SWR: | |
| Gain: | 16.0 dBd, f/b 29.7 dB |
| Beamwidth (-3 dB): | E-plane: 23°
H-plane: 23.8° |
| G/T @ 30° elevation: | ? dB |
| Max power: | 1 KW |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | 0.16 m² (1.72 ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 4.6 m (15.1 ft) = 6.67 wl
Longest element: 350 mm (13.78 ft) |
| Weight: | 3.1 Kg (6.83 lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | France, 19xx-20xx (Discontinued) |
| Additional info: |
The driven element is a folded dipole with a
quarter wave bazooka sleeve at the feed point.
|
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
