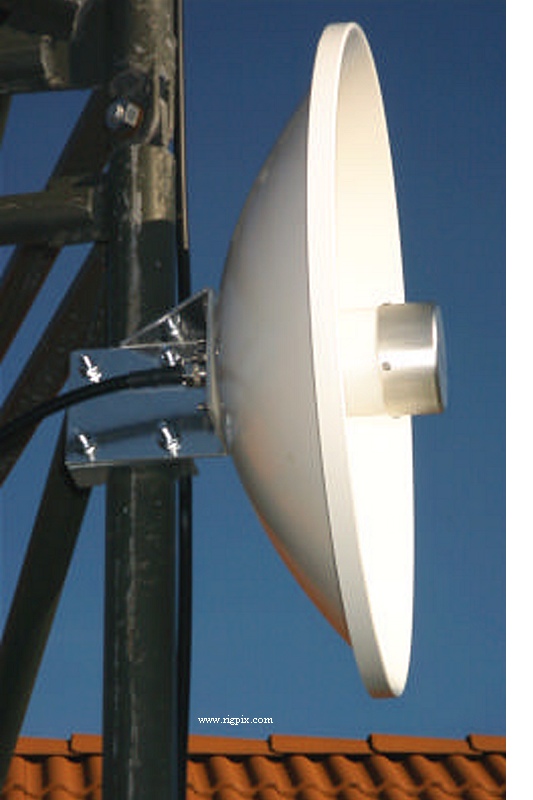

Svenska Antennspecialisten AB - SP45/24
SPECIFICATIONS
| Type: | UHF parabolic dish antenna |
| Frequency range / band(s): | 2400-2485 MHz |
| Bandwidth @ SWR: | 485 MHz @ VSWR less than 1.7:1 |
| Gain: | 18 dBi, f/b >25 dB |
| Beamwidth (-3 dB): | E-plane: 20°
H-plane: 20° |
| G/T @ 30° elevation: | - |
| Max power: | 20 W |
| Impedance / connector: | 50 ohm / N-jack |
| Wind area: | |
| Max wind resistance: | |
| Turning radius: | |
| Dimensions: | Diameter: 458 mm (18")
Depth: 240 mm (9.45"), with mounting bracket |
| Weight: | 1.7 Kg (3.75 lb), with mounting bracket |
| Mast mount diameter: | 35-50 mm (1.38-1.97") |
| Manufactured: | Sweden, 1999-20xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
