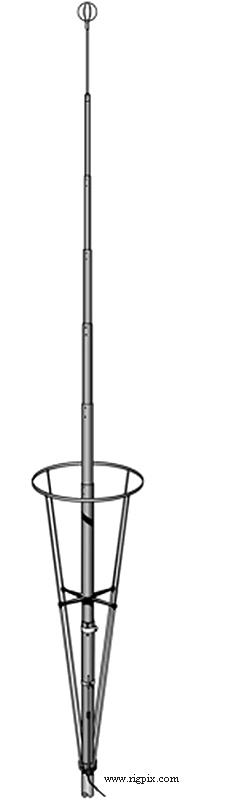

Sirio New Vector 4000
SPECIFICATIONS
| Type: | 10/11 m vertical base antenna |
| Frequency range / band(s): | 27-28.5 MHz - 3/4-wave J-pole (Tunable) |
| Bandwidth @ SWR: | 1.4 MHz @ SWR <2.0:1 |
| Gain: | 2 dBd |
| Beamwidth (-3 dB): | Omni |
| G/T @ 30° elevation: | - |
| Max power: | 1 KW (Continuous), 3 KW (Short term) |
| Impedance / connector: | 50 ohm / SO-239 (M-jack) |
| Wind area: | 0.29 m² (3.12 ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | - |
| Dimensions: | Height: 8.48 m (27.82 ft) |
| Weight: | 4.7 Kg (10.36 lb) |
| Mast mount diameter: | 35-42 mm (1.39-1.65") |
| Manufactured: | Italy, 20xx-20xx |
| Additional info: | |
| Related documents: | User manual (1.5 MB) |
| Reviews: | |
| Options / Accessories: |
|
|
