President Himalaya WB (Wideband)

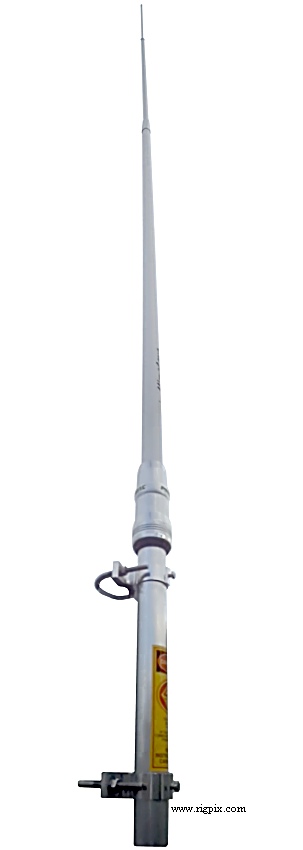

A picture of President Himalaya WB (Wideband)


Type:Amateur and/or CB vertical base antenna
Band(s):22-30 MHz (10/11/12 m) - 1/2-wave
Gain:0 dBd (8 dBi claimed)
Beamwidth (-3 dB):Omni
Wind area:? mē
Max power:2 KW (PEP)
Impedance / connector:50 ohm / SO-239
Dimensions:5.27 m (17.3 ft)
Weight:2 Kg (4.41 lbs)
Manufactured:Spain, 2017-202x
Other:New price 2019 in Sweden: SEK 1295:-
Related documents:
