Poynting WLAN-A044

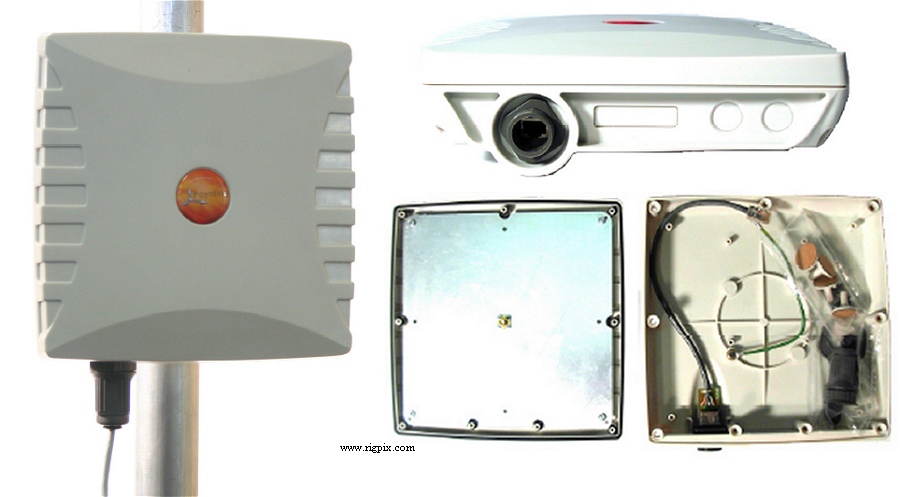

A picture of Poynting WLAN-A044

SPECIFICATIONS

Type:SHF panel antenna
Frequency range / band(s):5.1-5.9 GHz
Bandwidth:
Gain:19 dBi, f/b 27 dB
Beamwidth (-3 dB):E-plane: 15
H-plane: 15
G/T @ 30 elevation:-
Max power:10 W
Impedance / connector:50 ohm / SMA
Wind area:? m (? ft)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:210*235*55 mm (8.27*9.25*2.16")
Weight:1.3 Kg (2.87 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:201x-20xx
Additional info: The enclosure can house the radio electronics.
Related documents:Product sheet (504 KB)
Reviews:
Options / Accessories:
- -
