Mosley CL-33 "Classic 33"

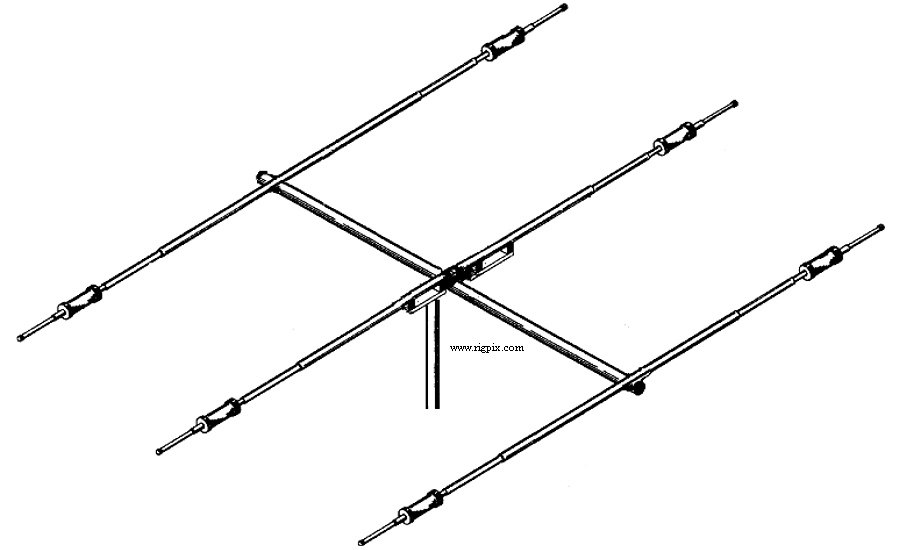

A picture of Mosley CL-33 ''Classic 33''

SPECIFICATIONS

Type:Amateur HF yagi, 3 elements
Band(s):10, 15 and 20 m
Gain: 10 m: 8.5 dBd, f/b 20 dB
15 m: 8.1 dBd, f/b 23 dB
20 m: 7.3 dBd, f/b 23 dB
Beamwidth (-3 dB):E-plane: ?
H-plane: ?
G/T @ 30 elevation:-
Max power:SSB: ? W
CW: ? W
Impedance / connector:50 ohm / N-type
Wind area:? m (? ft)
Max wind resistance:? m/sec (? mph)
Turning radius:? m (? ft)
Dimensions:Boom length: 5.49 m (18 ft)
Longest element: 7.62 m (25 ft)
Weight:? Kg (? lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:USA, 196x-19xx (Discontinued)
Additional info:
Related documents:Assembly manual (260 KB)
Reviews:
Options / Accessories:
- -
