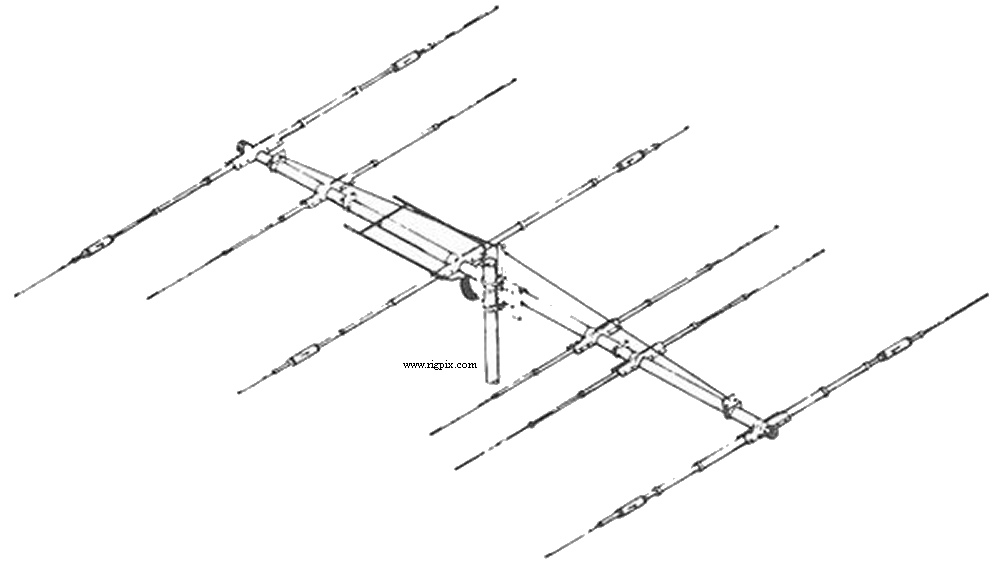

Maco SY36
SPECIFICATIONS
| Type: | Amateur HF yagi, 6 elements |
| Frequency range / band(s): | 20 / 15 / 10 m |
| Bandwidth: | |
| Gain: | 9 dBi, f/b 20 dB |
| Beamwidth (-3 dB): | E-plane: ?°
H-plane: ?° |
| G/T @ 30° elevation: | - |
| Max power: | 2 KW |
| Impedance / connector: | 50 ohm / SO-239 (M-jack) |
| Wind area: | ? m² (? ft²) |
| Max wind resistance: | ? m/sec (? mph) |
| Turning radius: | ? m (? ft) |
| Dimensions: | Boom length: 7 m (23 ft)
Longest element: 8.9 m (29.2 ft) |
| Weight: | 25 Kg (55.12 lb) |
| Mast mount diameter: | ?-? mm (?-?") |
| Manufactured: | 199x-20xx |
| Additional info: | |
| Related documents: | |
| Reviews: | |
| Options / Accessories: |
|
|
