Icom AH-8000

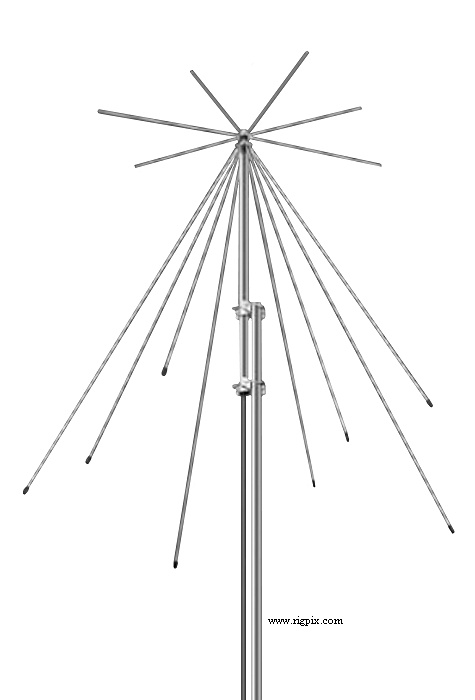

A picture of Icom AH-8000

SPECIFICATIONS

Type:VHF/UHF discone antenna
Frequency range / band(s): RX: 100-3300 MHz
TX: Airband / 2 m / 1.25 m / 70 cm / 33 cm / 23 cm / 13 cm
Bandwidth:
Gain:Max 3 dBi
Beamwidth (-3 dB):Omni
G/T @ 30 elevation:-
Max power:200 W
Impedance / connector:50 ohm / N-jack
Wind area:
Max wind resistance:50 m/sec (111.8 mph)
Turning radius:-
Dimensions:Heigth: 936 mm (36.85")
Weight:970 g (2.14 lb)
Mast mount diameter:?-? mm (?-?")
Manufactured:Japan, 200x-202x (Discontinued)
Additional info:
Related documents:User manual (236 KB)
Reviews:
Options / Accessories:
- -
